Save 28%

MFOS Wave Freaker Synth Module DIY Electronics Parts Kit

List price: £27.73
£20.08
(£24.10 UK, incl VAT) You save: £7.65 (28%)
7210-262
200 g
2 item(s)
End of line
+
Add to wish list

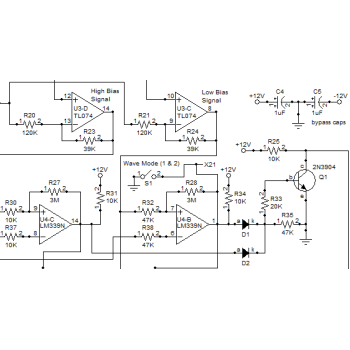

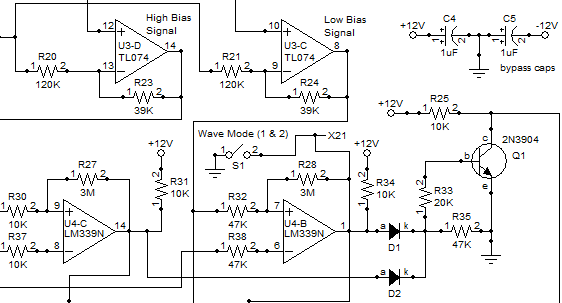

Have the right skills, tools and test gear to build your own modular synth, then our kits of parts may be just what you need. As a minimum, you will need to be able to identify electronic components, recognise when they need to be correctly orientated, to be able to use a small soldering iron and finally have access to test equipment. Some modules do not require the use of test equipment but any requirement will be in the 'Setting and Trimming' notes.

The kits include all required electronics components as well as pots & switches. The PCB, connectors and knobs are not included but available from Soundtronics as an option. Our front panel + matching back panel really finish off the module in a truly professional way. If you purchase the PCB and components through Soundtronics, then we will also support you with technical assistance just in case you get into any build difficulties.

We only source quality components and we even include the more expensive turned pin IC sockets as we feel the product justifies the extra cost both for reliability and serviceability. Our optional 1/4" jack sockets are by Switchcraft, yes you can save money by buying cheaper sockets hence us offering it as an option because we recognise they are a significant cost. We have standardised on Cliff KM20 knobs for all of our modules but again, as it's an option you can choose different knobs to suit your own preference. Finally, all components are available individually should you not need to purchase the whole kit.

Each Kit Contains:

Qty Reqd. Description Value Designators ST part No.
2 Zener Diode 500mW 5.1V, NXP,  NZX5V1B 5V1 0.5W Z2, Z3   2101-501
1 3k 0.25W 1% Metal Film Resistor 3k R88   7163-062
3 4k7 0.25W 1% Metal Film Resistor 4k7 R44, R45, R46 7163-067
15 10k 0.25W 1% Metal Film Resistor 10k R4, R6, R10, R18, R25, R30, R31, R34, R37, R41, R55, R67, R76,  R5, R14   7163-075
11 20k 0.25W 1% Metal Film Resistor 20k R33, R48, R61, R70, R79, R84, R85 (4 mounted across tip/ring of CV jacks)   7163-082
2 33k 0.25W 1% Metal Film Resistor 33k R7, R50   7163-087
3 39k 0.25W 1% Metal Film Resistor 39k R23, R24, R29   7163-089
11 47k 0.25W 1% Metal Film Resistor 47k R32, R35, R38, R42, R43, R51, R59, R63, R66, R68, R77   7163-091
1 56k 0.25W 1% Metal Film Resistor 56k R81   7163-093
14 100k 0.25W 1% Metal Film Resistor 100k R1, R2, R8, R36, R52, R58, R64, R73, R74, R82 , R3, R9, R19, R22 7163-099
4 120k 0.25W 1% Metal Film Resistor 120k R11, R20, R21, R26   7163-101
1 180k 0.25W 1% Metal Film Resistor 180k R16   7163-105
2 200k 0.25W 1% Metal Film Resistor 200k R17, R40   7163-106
2 300k 0.25W 1% Metal Film Resistor 300k R53, R54   7163-110
4 1M 0.25W 1% Metal Film Resistor 1M R80, R83, R86, R87   7163-122
3 2M 0.25W 1% Metal Film Resistor 2M R57, R65, R72   7163-129
7 3M 0.25W 1% Metal Film Resistor 3M R27, R28, R39, R47, R60, R69, R78   7163-130
1 SPDT Miniature Toggle Switch   S1   7212-250
3 Turned Pin 0.3 inch Dil IC Socket 8 Pin     7212-331
6 Turned Pin 0.3 inch Dil IC Socket 14 Pin     7212-332
1 2N3904 Transistor NPN TO-92 60V   Q1   7212-409
2 2N5457 N Channel Switch JFET Transistor   Q2, Q3   7212-411
3 1N914 75V Signal Diode   D1, D2, D3   7212-486
1 Zener Diode 500mW 10V 10V Z1   7212-488
1 4013B Dual D Type Flip Flop   U7   7212-509
1 4066B Quad Bilateral Switches   U5   7212-514
3 Dual Op-Amp BiFET TL072CP   U2, U6, U9   7212-542
2 Quad Op-Amp BiFET TL074   U1, U3   7212-544
2 Comparator LM339N Quad   U4, U8   7212-582
4 47pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 47pF Mounted across tip/ring of CV jacks   7212-733
1 100pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 100pF   U6/P3-P5 Kludge 7212-734
17 100nF 5mm X7R Dielectric Radial Ceramic Capacitor 100nF C2, C9, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C23, C24, C25   7212-749
5 1uF 5mm Y5V Dielectric Radial Ceramic Capacitor 1uF C1, C3, C4, C5, C6   7212-751
2 Multiturn Cermet Preset Top Adjust SIL 100k 100k   R12, R13   7212-860
3 10uF 50V Non-Polarised Electrolytic Capacitor 10uF C7, C8, C22   7213-315
1 5mm Single Piece LED Panel Mounting Clip - Prominent   LED1   7213-900
1 5mm LED Red High Efficency 45mcd Red LED1   7213-901
6 Synth Pot 16mm 100k Log 100k R49, R56, R62, R71, R75 (1 for input level control)   7300-030
1 Synth Pot 16mm 100k Lin 100k R15   7300-255
