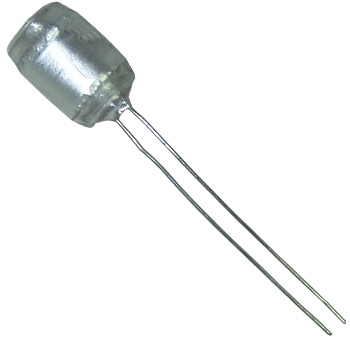

5nF 50V Film Polystyrene Radial Capacitor

£0.46
(£0.55 incl VAT)
Price in points: 92 points
2069-230
In stock
+

A Film type capacitor with a polystyrene dielectric.



  • Manufacturer:   Xicon
  • Product Type:   General Purpose
  • Dielectric: Polystyrene (PS)
  • Capacitance: 5000 pF
  • Tolerance: 5 %
  • Voltage Rating: 50 V
  • Operating Temperature Range: - 40 C to + 85 C
  • Termination Style: Radial
  • Case Diameter: 8.5 mm
  • Case Length: 12 mm
  • Dissipation Factor DF: 0.1

Features

  • Low temperature coefficient
  • High stability and high insulation resistance
  • Wide frequency range
  • Ideal for high frequency circuits, measuring instruments and analogue music synthesisers.
  • Electrodes and lead are spot welded to reduce series resistance
  • Low dissipation factor



Manufacturer:   Xicon

Product Type:   General Purpose

Dielectric: Polystyrene (PS)

Capacitance: 5000 pF

Tolerance: 5 %

Voltage Rating: 50 V

Operating Temperature Range: - 40 C to + 85 C

Termination Style: Radial

Manufacturer:   Xicon

Product Type:   General Purpose

Dielectric: Polystyrene (PS)

Capacitance: 5000 pF

Tolerance: 5 %

Voltage Rating: 50 V

Operating Temperature Range: - 40 C to + 85 C

Termination Style: Radial

Case Diameter: 8.5 mm

Case Length: 12 mm

Dissipation Factor DF: 0.1

Case Diameter: 8.5 mm

Case Length: 12 mm

Dissipation Factor DF: 0.1
