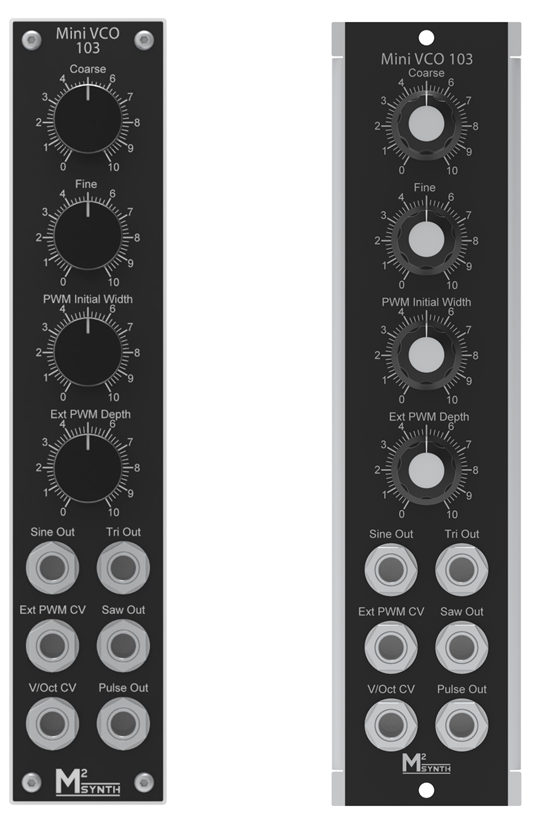

About the Mini VCO 103

Features

• 4 waveforms outputs Pulse, Saw, Triangle & Sine
• 1 Volt/Octave control voltage input
• Coarse and fine frequency potentiometer controls
• Pulse output can be varied from around 5% to 95% pulse width with potentiometer
• External pulse width modulation of pulse output with potentiometer attenuator

Specification

• Supply voltage +/-12Vdc
• Supply current  +20mA / -20mA
• Waveform levels +/-5V
• PWM CV range 0-10V
• Frequency range <10Hz to > 16kHz using coarse and fine frequency controls. <1Hz to > 60kHz with external CV applied
• Main PCB dimensions 43.5x130mm
