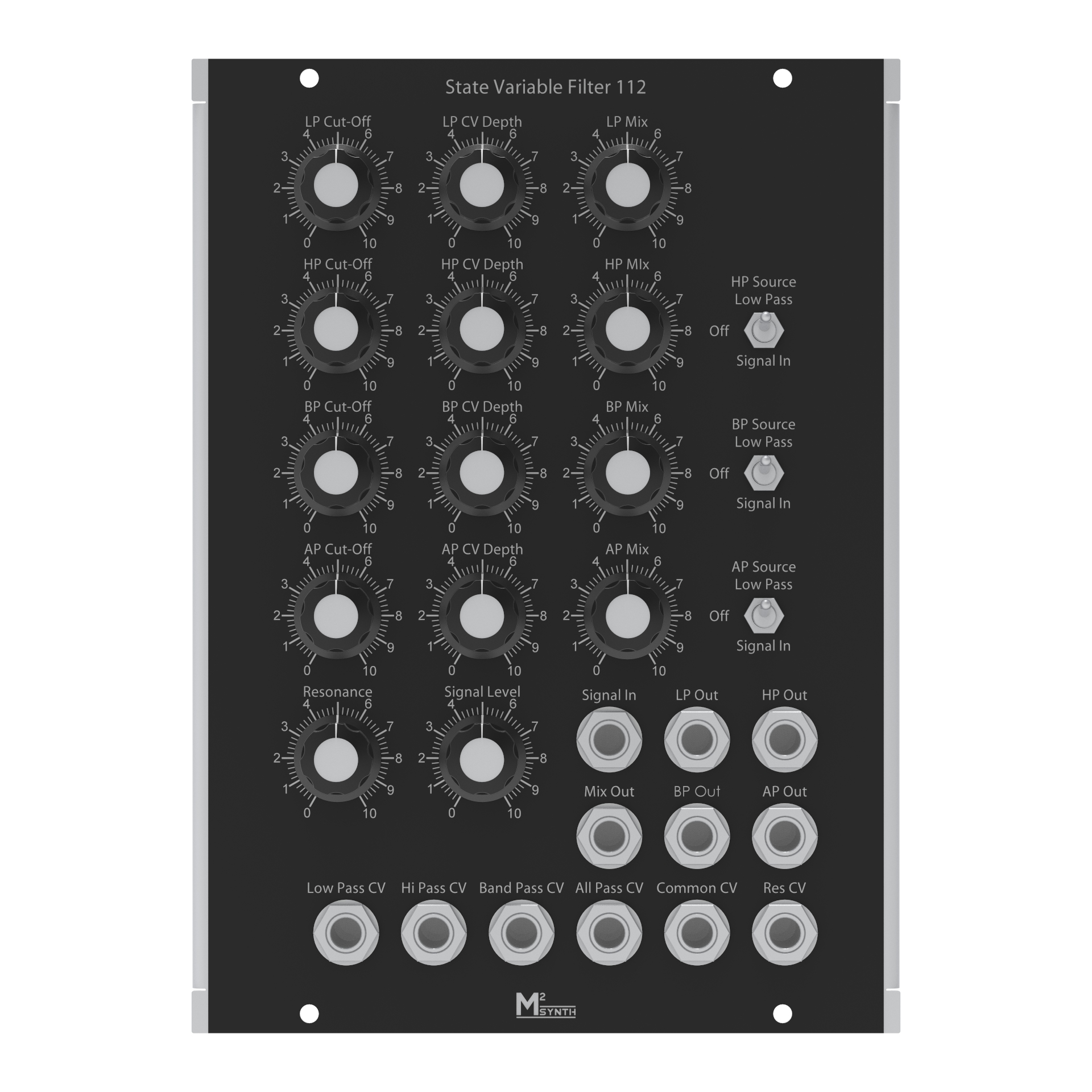

About the SV VCF 112

Features

• 1 Volt / Octave cut-off frequency CV for each filter type plus a common CV input that controls all filters at once.
• Resonance potentiometer control with external CV control (controls all filter types)
• Each filter type has its own output
• A 4-channel output mixer blends the outputs of all 4 filter types to a common output
• Switches control the HP, BP and AP filter input route - off, main input signal or the LP filter output

Specification

• Supply voltage +/-12Vdc or +/-15V if using the external voltage regulator
• Supply current +40mA / -55mA
• Waveform levels +/-5V
• Main PCB dimensions 131.95x174.05mm
