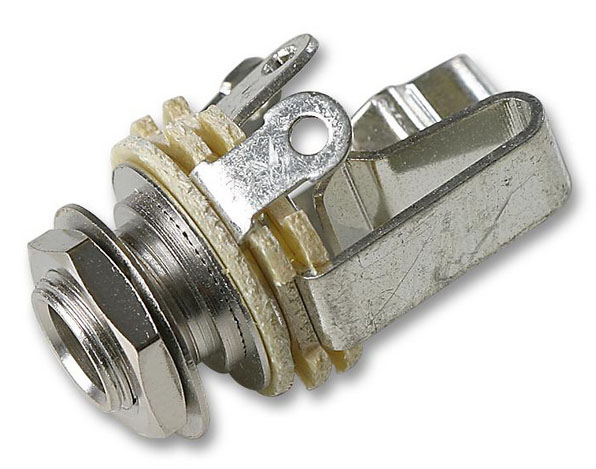

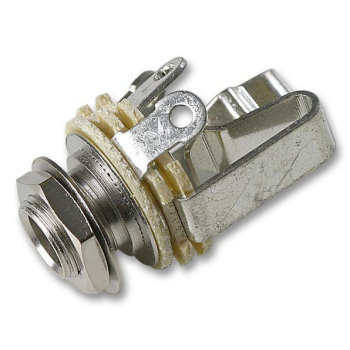

The NYS230 from Neutrik is a 3 pole, open 1/4'' stereo phone jack. This jack comes with 2 contacts, washer and nut, suitable for panel thickness of 3.5mm with 0.205" FASTON tabs which can also be soldered. Despite the 3.5mm specified maximum panel thickness of 3.5mm, they can be still be used with our synth front panels even with our 3mm aluminium back panels.
- Brass (CuZn39Pb3) contacts with SnCe plating
- Brass (CuZn39Pb3) shell with nickel shell plating
- Dielectric strength of 0.5KVDC
- Complies with IEC 68-2-20 solderability
- Lifetime of 1000 mating cycles
- Temperature range from -20°C to 70°C
