AS394-HYB Matched NPN Transistor Pair 8-Pin DIP Module (LM394)

£6.30
(£7.56 UK, incl VAT)
7212-600
1 g
In stock
+

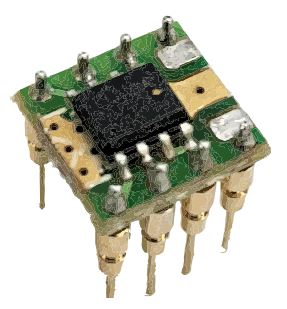

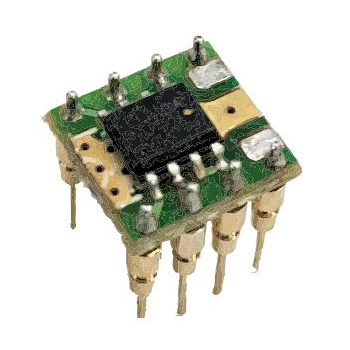

AS394-HYB (AS194-HYB) is a DIP-8 module which contains matched monolithic NPN transistor pair
The AS394 (with an order of magnitude improvement in matching over conventional transistor pair ) with improved heatsink possibility and place for mounting SMT thermosensor (2010 size).
Electrical parameters - according to datasheet of AS194DE/AS394DE (See Downloads tab)
Heatsink is soldered to Exposed Pad (exposed pad isolated from substrate) of AS194DE/AS394DE providing low Juntion-Ambient thermoresistance. Pins 4 and 5 of module are connected only to SMT thermosensor (2010 size).
Thermosensor can be placed over heatsink, allowing good thermocontact (dielectric) to heatsink with the help of heatconductive material. Thermosensor not mounted.

No FAQ found

No posts found

Write a review

AS394-HYB Datasheet (7212-600-AS394-HYB.pdf, 541 Kb) [Download]

AS394 Datasheet (7212-600-AS394CH.pdf, 361 Kb) [Download]
