Eurorack PCB Connector HE10 2x5 Way PCB Mount

£0.21
(£0.25 UK, incl VAT)
7212-301
2 g
In Stock
+

Minimum quantity for "Eurorack PCB Connector HE10 2x5 Way PCB Mount" is 5.

Add to wish list

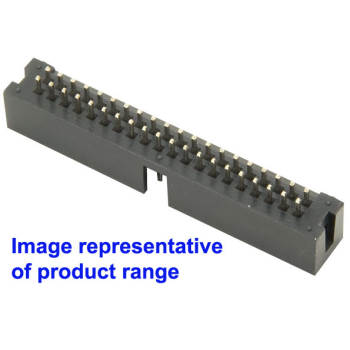

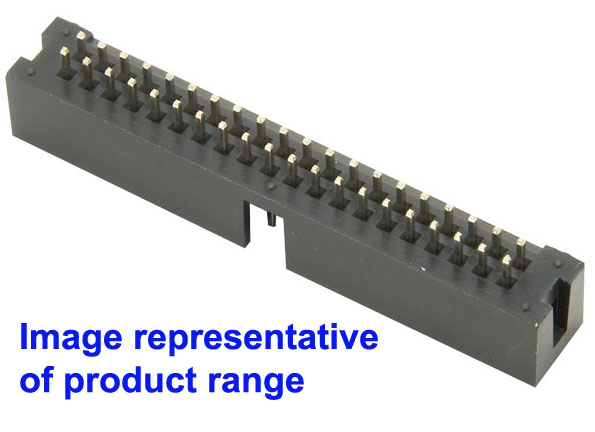

These box headers are a dual row shrouded header for use with our dual row IDC female socket connector 7212-300. The low profile, space saving design has a centre slot for the socket''s polarization bump. We use these for the Eurorack PCB connection on our YuSynth PCBs.


  • Number of ways: 10 (2x5)
  • Provides a quick and simple interconnection system
  • Gold-plated brass contacts
  • Designed for use with ribbon cable
  • Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options
IDC Socket pitch: 2.54mm
Contact: Copper alloy
Plating: Gold flash plated
Insulator: Thermoplastic
Contact resistance: 20mΩ
Insulation resistance: 1000MΩ min.
Dielectric withstanding voltage: 500V AC 1 minute
Storage temperature: -20°C to +70°C
Operating temperature: 0°C to +85°C
Approval UL 94 V-0
