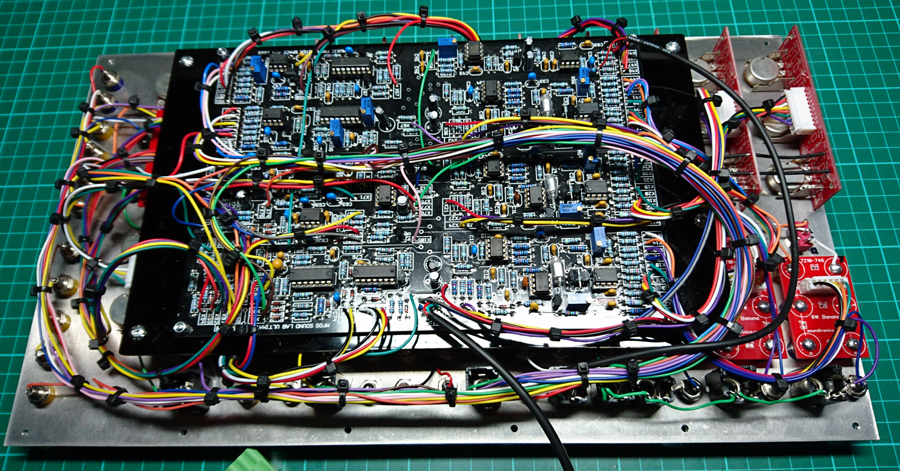

When using our MFOS and Yusynth projects in a modular synth, the PCB holder is attached to the panel using angle brackets. Sometimes, the PCB holder is better arranged in a flat orientation to minimise depth of the overall module. This is especially the case for large PCBs or when mounting the modules in one of our hardwood cases.

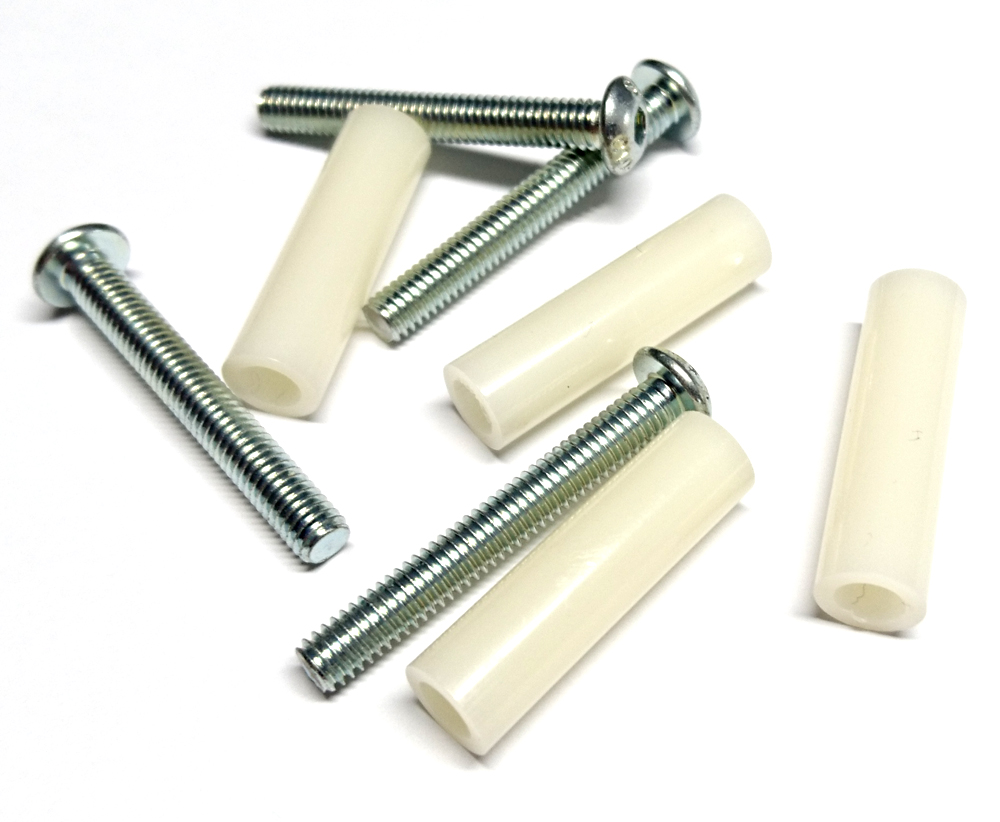

This pack includes four 25mm long spacers and four M4 x 30mm screws. Many of our panels already include pre-tapped M4 holes to match the PCB holder but where they are not included, you will need to drill and tap M4 prior to assembly.
The spacers have an overall diameter of 7mm, internal diameter of 4.2mm.
