Soundtronics ADSR 3310 synth module front panel

Soundtronics, ADSR, 3310, Laser, Engraved, 5Ux1U, Laminate, Front, Panel


£5.88 incl VAT
(£4.90 exc. tax)
7215-520
20.00 g.
In stock
Made to order
Normally dispatched within 1-6 days
+
Add to wish list

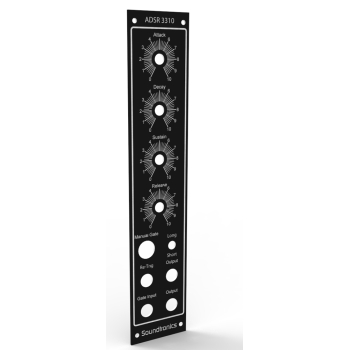

A 1.6mm thick ADSR 3310 front panel - 5U high, 1U wide (nominal 8.75 x 1.75") made from a semi-rigid plastic material laser engraved to give a hard wearing surface. As a material, it is not suitable for being used without some form of rigid backing material (see below).

We can offer this front panel in a choice of 2 colours:

  • White artwork on a black background

We find that when using our panel mounting components such as pots and sockets, you can mount this panel to a rigid backboard of up to 3mm thick. The backboard can be plywood or aluminium (ideally used 6082T6 or 5251 H22 grades as these are 'stiffer' than low grade 1050 types) for example and the panel component fixings will hold the two layers together.

Each panel is supplied ready engraved, cut to size with all holes cut out. The cut-outs suit the panel components we provide so check these out if you are using your own bits to ensure the diameters are suitable.

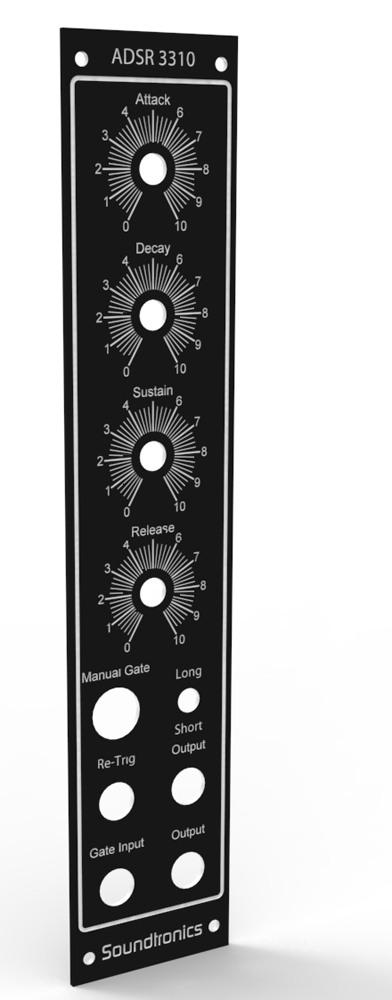

If you click on the image above, you will see a larger and higer resolution version, if you then click on the 'X' in the top right corner of the hi res version, it will zoom to full size.

For a PDF of panel artwork, see under 'Downloads' tab.

See the ADSR 3310 main page here for further related products.
