Voltage Regulator 78L12 +12V 100mA

£0.18
(£0.22 UK, incl VAT)
Price in points: 36 points
2230-031
1 g
In stock
+

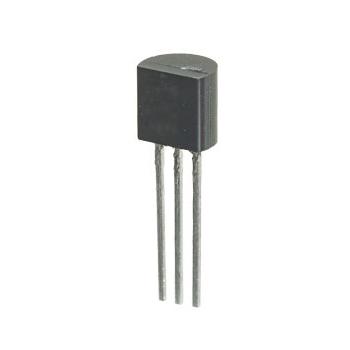

Voltage Regulator 78L12 +12V rated at 100mA, housed in a TO-92 package.


  • 3-Terminal regulator
  • Internal current limiting
  • Internal thermal shutdown
  • Applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation
  • Max Input Voltage: 35V
  • Output Voltage typ.: 11.64 to 12.36V
  • Line Regulation max: 250mV
  • Load Regulation max: 50mV
  • Output Noise Volatge: 80uV
  • Ripple Rejection: 54dB



Downloads
