MFOS Sound Lab Ultimate Expander DIY Electronics Parts Kit

List price: £119.51
£102.08
(£122.50 UK, incl VAT) You save: £17.43 (15%)
7210-275
200 g
2 item(s)
End of line
+ −
Add to wish list

Intro

At Soundtronics, we can offer everything you need to build your full MFOS analogue synth. Whether you need a single hard to find component or a fully assembled module then Soundtronics.co.uk is the place to be.

We list all parts individually or as kits and bulk packs so you are free to choose parts to suit your particular needs.

Our kits include all required electronics components including the pots, switches, banana sockets, we even include high quality turned pin IC sockets.

This kit excludes the optional PCB, jack sockets and front panel.

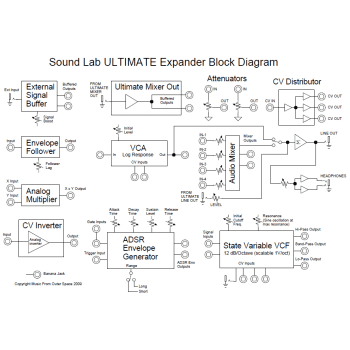

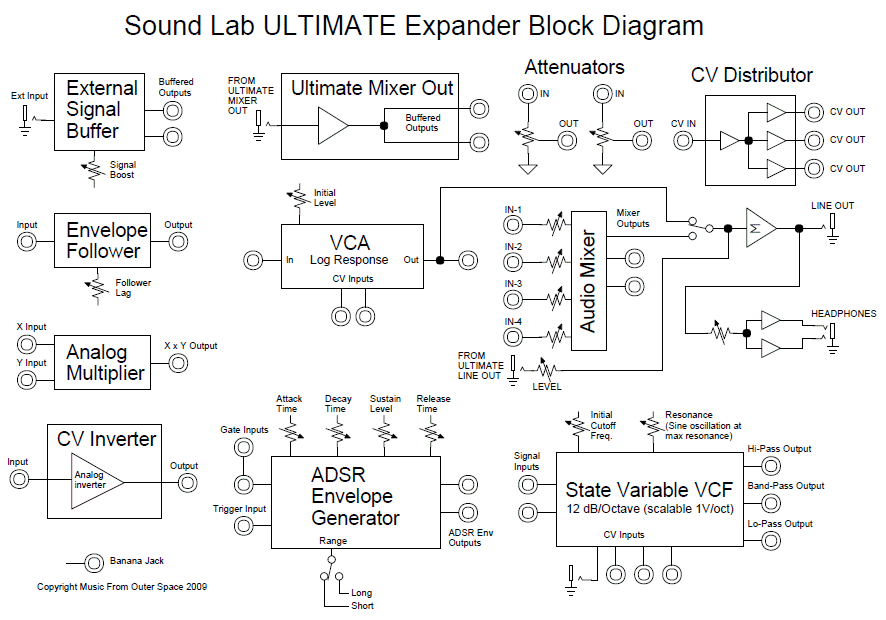

MFOS Sound Lab Ultimate Expander Kit Contents

Qty Reqd. Description Value Designators ST Part No.
22 4mm 16A Socket Yellow (PCB Mount)   Banana Jacks with color to denote inputs   1240-060
20 4mm 16A Socket Blue (PCB Mount)   Banana Jacks with color to denote outputs   1240-061
2 10R 0.25W 1% Metal Film Resistor 10R R129, R132   7163-007
4 100R 0.25W 1% Metal Film Resistor 100R R26, R28, R53, R70   7163-027
9 1k 0.25W 1% Metal Film Resistor 1k R67, R90, R96, R98, R99, R106, R126, R135, R153   7163-051
8 2k 0.25W 1% Metal Film Resistor 2k R11, R13, R34, R37, R57, R65, R94, R143   7163-058
6 3k 0.25W 1% Metal Film Resistor 3k R107, R110, R113, R115, R121, R122   7163-062
2 4k7 0.25W 1% Metal Film Resistor 4k7 R55, R66   7163-067
15 10k 0.25W 1% Metal Film Resistor 10k R2, R8, R77, R78, R82, R85, R86, R87, R95, R119, R149, R158, R159, R164, R165   7163-075
12 20k 0.25W 1% Metal Film Resistor 20k R14, R15, R16, R17, R62, R63, R79, R81, R84, R131, R136, R140   7163-082
4 30k 0.25W 1% Metal Film Resistor 30k R44, R49, R52, R54   7163-086
1 33k 0.25W 1% Metal Film Resistor 33k R5   7163-087
3 39k 0.25W 1% Metal Film Resistor 39k R27, R38, R147   7163-089
1 43k 0.25W 1% Metal Film Resistor 43k R25   7163-090
3 47k 0.25W 1% Metal Film Resistor 47k R72, R75, R163   7163-091
34 100k 0.25W 1% Metal Film Resistor 100k R6, R9, R10, R19, R20, R22, R23, R41, R43, R47, R48, R51, R56, R58, R60, R64, R68, R80, R83, R88, R137, R138, R141, R142, R144, R145, R146, R148, R151, R152, R154, R156, R157, R160 7163-099
2 120k 0.25W 1% Metal Film Resistor 120k R42, R61   7163-101
5 150k 0.25W 1% Metal Film Resistor 150k R21, R32, R36, R40, R101   7163-103
1 180k 0.25W 1% Metal Film Resistor 180k R35   7163-105
1 200k 0.25W 1% Metal Film Resistor 200k R155   7163-106
1 300k 0.25W 1% Metal Film Resistor 300k R18   7163-110
11 470k 0.25W 1% Metal Film Resistor 470k R71, R103, R104, R105, R109, R111, R114, R117, R125, R127, R130   7163-114
9 1M 0.25W 1% Metal Film Resistor 1M R24, R30, R76, R89, R118, R120, R124, R134, R139   7163-122
1 2M 0.25W 1% Metal Film Resistor 2M R74   7163-129
3 4M7 0.6W 1% Metal Film Resistor 4M7 0.4W 1% R33, R39, R133   7163-131
1 499k 0.25W 1% Metal Film Resistor 499k R12   7163-132
1 475R 0.25W 1% Metal Film Resistor 475R R7   7163-135
4 49.9k 0.25W 1% Metal Film Resistor 49k9 R29, R31, R46, R50   7163-137
1 2N3904 Matched Transistor Pairs   U7   7210-100
17 Re'an 19mm Black Mixer Style Knob for 6mm Sline Shaft     7212-160
17 Re'an Blue Cap for 19mm Knobs 7212-160 & 7212-161 Blue   7212-166
2 SPDT Miniature Toggle Switch   S2 , S3 7212-250
1 Low Profile Push to Make Switch, Black   S1   7212-254
13 Turned Pin 0.3 inch Dil IC Socket 8 Pin     7212-331
7 Turned Pin 0.3 inch Dil IC Socket 14 Pin     7212-332
2 Turned Pin 0.3 inch Dil IC Socket 16 Pin     7212-333
1 2N3904 Transistor NPN TO-92 60V   Q3   7212-409
3 2N3906 40V TO92 PNP AUDIO Transistor   Q1, Q2, Q4   7212-410
10 1N914 75V Signal Diode   D1, D2, D3, D4, D5, D6, D7, D8, D9, D10   7212-486
1 4001B Quad 2 Input Nor Gate   U10   7212-508
1 4066B Quad Bilateral Switches   U12   7212-514
1 40106B Hex Schmitt Trigger   U11   7212-521
3 Single Op-Amp BiFET TL071   U8, U16, U23   7212-541
7 Dual Op-Amp BiFET TL072CP   U1, U4, U5, U9, U14, U15, U20   7212-542
4 Quad Op-Amp BiFET TL074   U3, U13, U17, U22   7212-544
2 LM13700N Dual Transconductance Amplifiers   U2, U6   7212-574
2 LM386N-4 Low Power Audio Amplifier 1W 8-Pin DIP   U18, U19   7212-576
1 AD633AN Analogue 4 Quandrant Multiplier 8-Pin DIP   U21   7212-579
1 22pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 22pF C8   7212-731
3 47pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 47pF C37, C44, C47   7212-733
3 100pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 100pF   C1, C21, C33   7212-734
2 220pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 220pF C2, C3   7212-735
2 1nF 5mm X7R Dielectric Radial Ceramic Capacitor 1nF C31, C32   7212-740
2 10nF 5mm X7R Dielectric Radial Ceramic Capacitor 10nF C25, C26   7212-746
2 47nF 5mm X7R Dielectric Radial Ceramic Capacitor 47nF C56, C62   7212-748
43 100nF 5mm X7R Dielectric Radial Ceramic Capacitor 100nF C4, C5, C6, C7, C9, C10, C11, C13, C14, C15, C18, C20, C22, C23, C27, C28, C29, C34, C39, C40, C41, C42, C43, C45, C46, C48, C49, C50, C51, C52, C53, C54, C58, C59, C60, C64, C65, C66, C67, C69, C71, C73, C74   7212-749
1 220nF 5mm Y5V Dielectric Radial Ceramic Capacitor 220nF C72   7212-750
1 Multiturn Cermet Preset Top Adjust SIL 100R 100R R1   7212-851
1 Multiturn Cermet Preset Top Adjust SIL 2k 2k R69   7212-855
2 Multiturn Cermet Preset Top Adjust SIL 100k 100k   R3, R73   7212-860
6 Radial Electrolytic Capacitor 10uF 25V 10uF 25V   C12, C16, C24, C30, C75, C76   7213-106
2 Radial Electrolytic Capacitor 220uF 25V 220uF 25V C57, C63   7213-111
4 Radial Electrolytic Capacitor 1uF 63V 1uF 63V C17, C19, C55, C61   7213-116
1 Tantalum Bead Capacitor 25V 1uF 1uF 25V  2.5mm C35   7213-205
1 Tantalum Bead Capacitor 25V 15uF 15uF 25V 2.5mm C36   7213-209
1 10uF 50V Non-Polarised Electrolytic Capacitor 10uF C38   7213-315
7 Synth Pot 16mm 100k Log 100k R123   7300-030
3 Synth Pot 16mm 1M Log 1M   R91, R92, R97   7300-070
2 Synth Pot 16mm 22k Lin 22k R161, R162   7300-240
4 Synth Pot 16mm 100k Lin 100k R4, R45, R59, R93 , R100, R102, R108, R112, R116, R128   7300-255
1 Synth Pot 16mm 1M Lin 1M R150   7300-270
