Save 39%

YuSynth Boolean Logic Module Bare Electronics Parts Kit

List price: £7.89
£4.80
(£5.76 UK, incl VAT) You save: £3.09 (39%)
7220-259
32 g
4 item(s)
End of line
+
Add to wish list

Have the right skills, tools and test gear to build your own modular synth, then our kits of parts may be just what you need. As a minimum, you will need to be able to identify electronic components, recognise when they need to be correctly orientated, to be able to use a small soldering iron and finally have access to test equipment. Some modules do not require the use of test equipment but any requirement will be in the 'Setting and Trimming' notes.

The kits include all required electronics components as well as pots & switches. The PCB, connectors and knobs are not included but available from Soundtronics as an option. Our, front panel + matching back panel* really finish off the module in a truly professional way. If you purchase the PCB and components through Soundtronics, then we will also support you with technical assistance just in case you get into any build difficulties.

We only source quality components and we even include the more expensive turned pin IC sockets as we feel the product justifies the extra cost both for reliability and serviceability. Our optional 1/4" jack sockets are by Switchcraft, yes you can save money by buying cheaper sockets hence us offering it as an option because we recognise they are a significant cost. We have standardised on Cliff KM20 knobs for all of our modules but again, as it's an option you can choose different knobs to suit your own preference. Finally, all components are available individually should you not need to purchase the whole kit.

*Coming soon

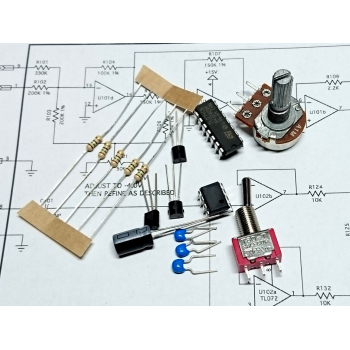

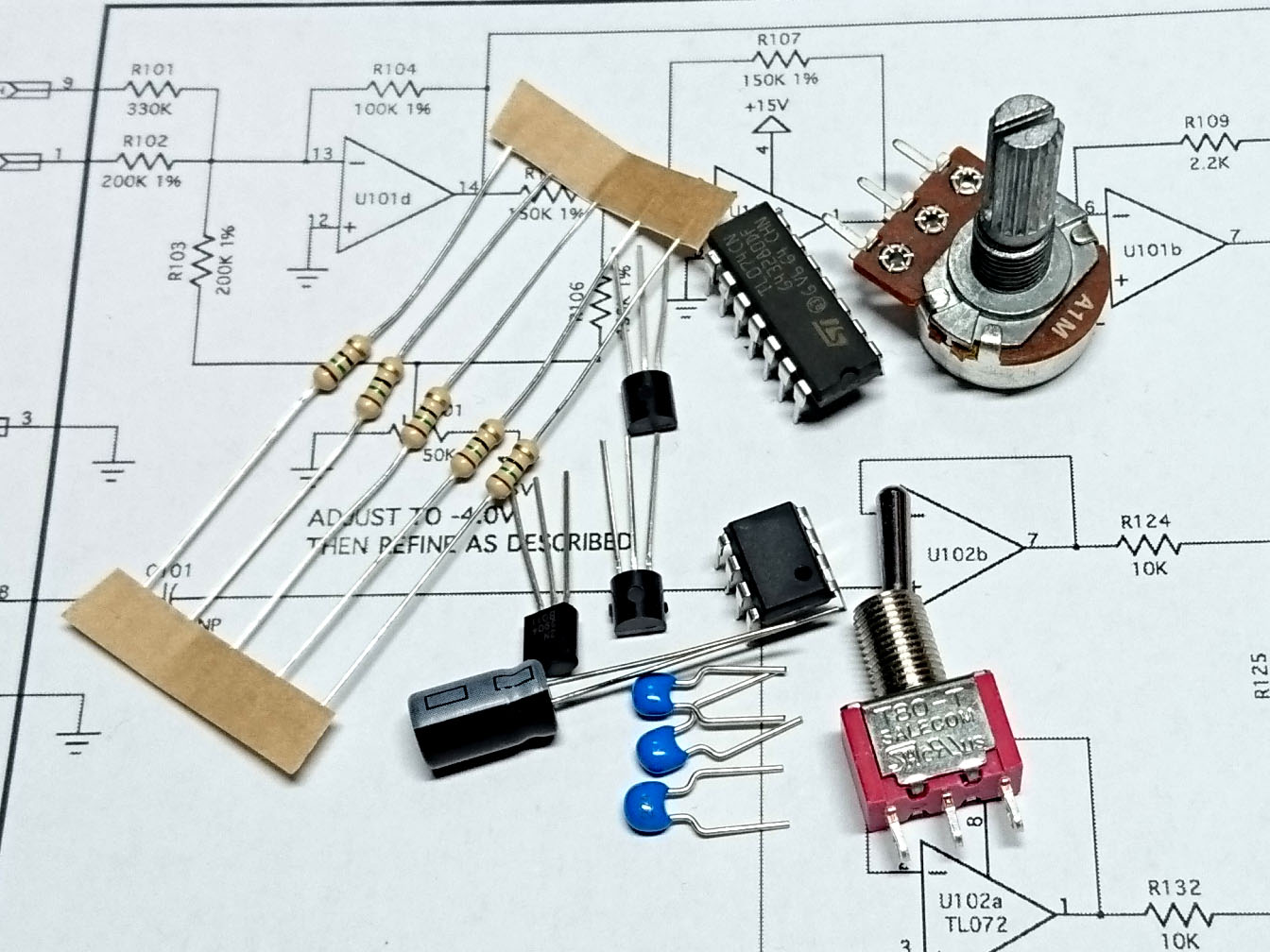

Components Kit Contents (excludes PCB, sockets and knobs)

Z1....Z3 2101-502 Zener Diode 500mW 5.1V, Fairchild,  1N5231B 3
R1 7163-007 10R 0.25W 1% Metal Film Resistor 1
R4, R9, R15, R20, R25, R31, R36, R41, R45 7163-035 220R 0.25W 1% Metal Film Resistor 9
R50 7163-039 330R 0.25W 1% Metal Film Resistor 1
R17, R33, R47, R55 7163-051 1k 0.25W 1% Metal Film Resistor 4
R16, R32, R46 7163-055 1k5 0.25W 1% Metal Film Resistor 3
R13, R29, R44 7163-067 4k7 0.25W 1% Metal Film Resistor 3
R5, R6, R10, R11, R12, R21, R22, R26, R27, R28, R37, R38, R42, R43, R51, R54 7163-083 22k 0.25W 1% Metal Film Resistor 16
R52 7163-091 47k 0.25W 1% Metal Film Resistor 1
R53 7163-099 100k 0.25W 1% Metal Film Resistor 1
R14, R30 7163-107 220k 0.25W 1% Metal Film Resistor 2
R2, R7, R18, R23, R34, R39, R48 7163-122 1M 0.25W 1% Metal Film Resistor 7
R3, R8, R19, R24, R35, R40, R49 7163-128 1M2 0.25W 1% Metal Film Resistor 7
Q1.....Q18 7212-401 BC547C Diotec Bipolar NPN Transistor TO-92 18
D1.....D13 7212-480 1N4148 Signal Diode 13
C2.....C8 7212-749 100nF 5mm X7R Dielectric Radial Ceramic Capacitor 7
C1 7213-108 Radial Electrolytic Capacitor 22uF 25V 1
LD1, LD2, LD3 7213-900 5mm Single Piece LED Panel Mounting Clip - Prominent 3
LD1, LD2, LD3 7213-901 5mm LED Red High Efficency 45mcd 3
