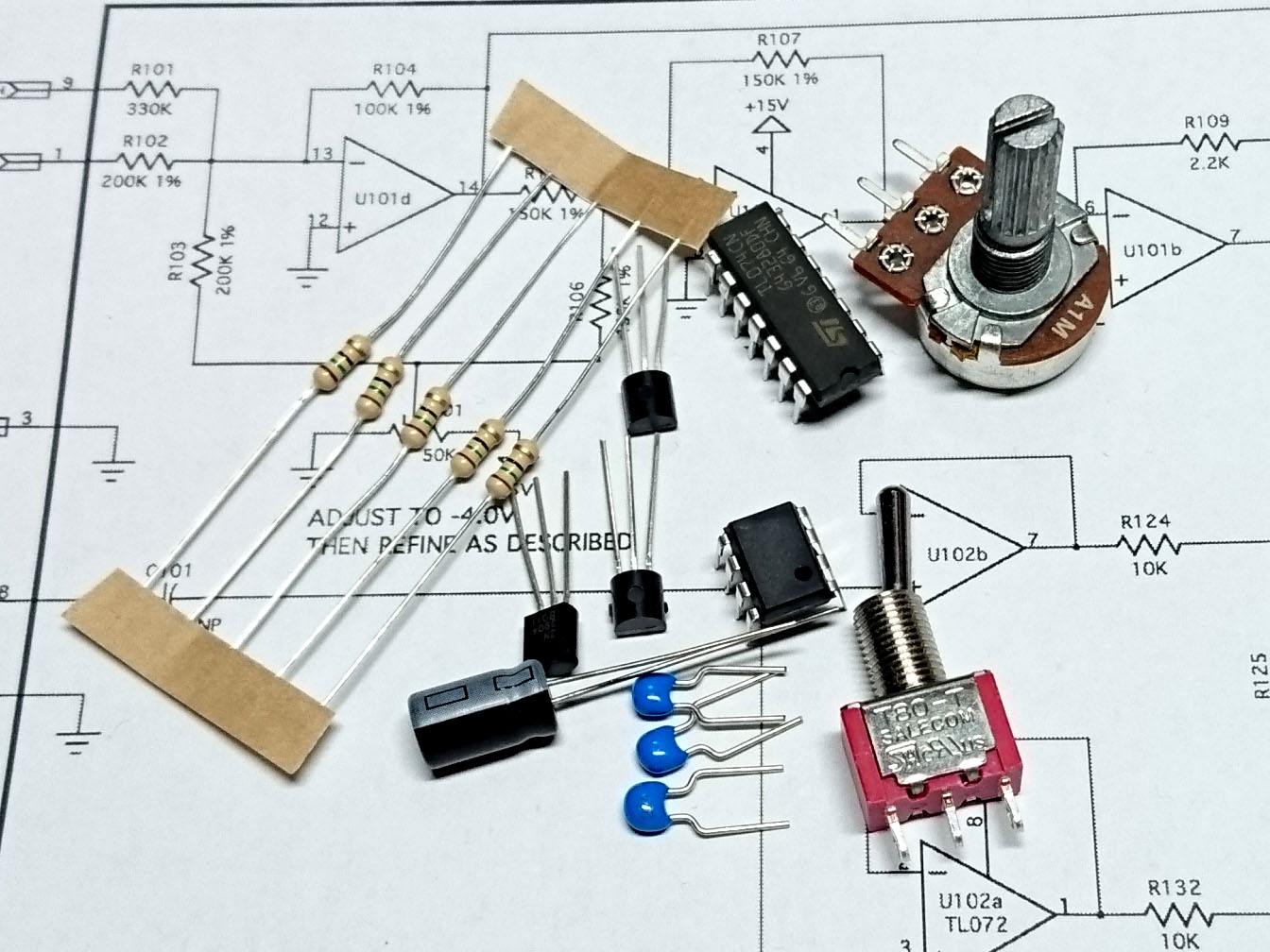

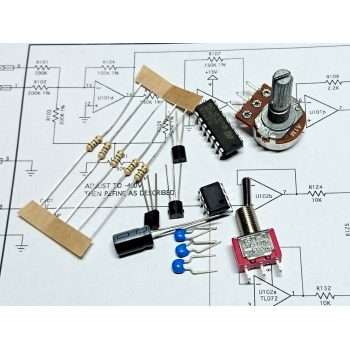

YuSynth Fixed Resonant Filter Bank Module Bare Electronics Parts Kit

£46.52 incl VAT
(£38.77 exc. tax)
40.00 g.
In stock
More stocks available in 1-4 days
Add to wish list

Have the right skills, tools and test gear to build your own modular synth, then our kits of parts may be just what you need. As a minimum, you will need to be able to identify electronic components, recognise when they need to be correctly orientated, to be able to use a small soldering iron and finally have access to test equipment. Some modules do not require the use of test equipment but any requirement will be in the 'Setting and Trimming' notes.

The kits include all required electronics components as well as pots & switches. The PCB, connectors and knobs are not included but available from Soundtronics as an option. Our, front panel + matching back panel* really finish off the module in a truly professional way. If you purchase the PCB and components through Soundtronics, then we will also support you with technical assistance just in case you get into any build difficulties.

We only source quality components and we even include the more expensive turned pin IC sockets as we feel the product justifies the extra cost both for reliability and serviceability. Our optional 1/4" jack sockets are by Switchcraft, yes you can save money by buying cheaper sockets hence us offering it as an option because we recognise they are a significant cost. We have standardised on Cliff KM20 knobs for all of our modules but again, as it's an option you can choose different knobs to suit your own preference. Finally, all components are available individually should you not need to purchase the whole kit.

*Coming soon

Components Kit Contents (excludes PCB, sockets and knobs)

Reference Part No. Description Qty
R90, R91 7163-007 10R 0.25W 1% Metal Film Resistor 2
R78a 7163-043 470R 0.25W 1% Metal Film Resistor 1
R80b, R80b 7163-047 680R 0.25W 1% Metal Film Resistor 2
R87, R88, R89 7163-051 1k 0.25W 1% Metal Film Resistor 3
R2, R5, R8, R11, R14, R17, R20, R23, R26, R29, R32, R35, R38, R41, R44, R47, R50, R53, R56, R59, R62, R65, R68, R71 7163-057 1k8 0.25W 1% Metal Film Resistor 24
R78a 7163-063 3k3 0.25W 1% Metal Film Resistor 1
R77 7163-065 3k9 0.25W 1% Metal Film Resistor 1
R79b 7163-079 15k 0.25W 1% Metal Film Resistor 1
R1, R4, R7, R10, R13, R16, R19, R22, R25, R28, R31, R34, R37, R40, R43, R46, R49, R52, R55, R58, R61, R64, R67, R70, R80a, R81a 7163-083 22k 0.25W 1% Metal Film Resistor 26
R83 7163-089 39k 0.25W 1% Metal Film Resistor 1
R3, R6, R9, R12, R15, R18, R21, R24, R27, R30, R33, R36, R39, R42, R45, R48, R51, R54, R57, R60, R63, R66, R69, R72 7163-091 47k 0.25W 1% Metal Film Resistor 24
R84, R85, R86 7163-099 100k 0.25W 1% Metal Film Resistor 3
R79a 7163-101 120k 0.25W 1% Metal Film Resistor 1
R73, R74, R75, R76 7163-103 150k 0.25W 1% Metal Film Resistor 4
R82 7163-113 390k 0.25W 1% Metal Film Resistor 1
  7212-309 HE10 14 Female Socket  Connector 1
  7212-312 HE10 14 Male PCB Connector 1
U1, U2, U3, U4, U5, U6, U7, U8 7212-332 Turned Pin 0.3 inch Dil IC Socket 14 Pin 8
U1, U2, U3, U4, U5, U6, U7, U8 7212-544 Quad Op-Amp BiFET TL074 8
C49a 7212-705 68nF 100V 10% Polyester Box Capacitor 1
C71, C72, C73, C74 7212-731 22pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 4
C50a, C50b, C53, C54, C55, C56, C57 7212-740 1nF 5mm X7R Dielectric Radial Ceramic Capacitor 7
C51b, C52b 7212-741 2n2 5mm X7R Dielectric Radial Ceramic Capacitor 2
C49b 7212-744 4n7 5mm X7R Dielectric Radial Ceramic Capacitor 1
C51a, C52a 7212-746 10nF 5mm X7R Dielectric Radial Ceramic Capacitor 2
C61, C62, C63, C64, C65, C66, C67, C68 7212-749 100nF 5mm X7R Dielectric Radial Ceramic Capacitor 8
C45b, C46b, C47b, C48b 7212-777 1n Polyester Capacitor 5% 4
C37b, C38b, C39b, C40b 7212-778 1n5 Polyester Capacitor 5% 4
C5b, C6b, C7b, C8b, C21b, C22b, C23b, C24b, C33b, C34b, C35b, C36b, C41a, C42a, C43a, C44a, C41b, C42b, C43b, C44b, C45a, C46a, C47a, C48a 7212-779 2n2 Polyester Capacitor 5% 24
C9b, C10b, C11b, C12b, C17b, C18b, C19b, C20b, C25b, C26b, C27b, C28b, C29b, C30b, C31b, C32b 7212-780 3n3 Polyester Capacitor 5% 16
C13b, C14b, C15b, C16b, C37a, C38a, C39a, C40a 7212-781 4n7 Polyester Capacitor 5% 8
C33a, C34a, C35a, C36a 7212-782 6n8 Polyester Capacitor 5% 4
C29a, C30a, C31a, C32a 7212-783 10n Polyester Capacitor 5% 4
C25a, C26a, C27a, C28a 7212-784 15n Polyester Capacitor 5% 4
C21a, C22a, C23a, C24a 7212-785 22n Polyester Capacitor 5% 4
C17a, C18a, C19a, C20a 7212-786 33n Polyester Capacitor 5% 4
C1b, C2b, C3b, C4b, C13a, C14a, C15a, C16a 7212-787 47n Polyester Capacitor 5% 8
C9a, C10a, C11a, C12a 7212-788 68n Polyester Capacitor 5% 4
C1a, C2a, C3a, C4a, C5a, C6a, C7a, C8a 7212-789 100n Polyester Capacitor 5% 8
RN1, RN2, RN3, RN4 7212-832 Resistor Network 8-Commoned 100k 4
C59, C60 7213-106 Radial Electrolytic Capacitor 10uF 25V 2
C69, C70 7213-110 Radial Electrolytic Capacitor 100uF 25V 2
P1, P2, P3, P4, P5, P6, P7, P8, P9, P10, P11, P12, P13, P14 7300-015 Synth Pot 16mm 10k Log 14
