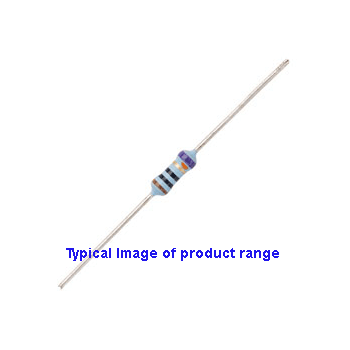

Precision metal film resistor offering high precision coupled with very high stability. Light blue body colour with 5 band colour coding all supplied in a standard 0.25W sized body.
Sold individually.
- 0.1% tolerance
- 0.4W rated
- Equivalent to Welwyn RC55 and Meggitt H8 series
- BC Components MBB0207 series
| Dimensions | 6.3 x 2.5mm |
| Power rating | 0.4W @ 70°C |
| Resistance tolerance | ±0.1% |
| Temperature coefficient | ±15ppm |
| Resistance range | 10Ω – 1MΩ |
| Max working voltage | 300V |
| Climatic category | 55/85/56 |
| Operating temperature range | –25°C to +125°C |
