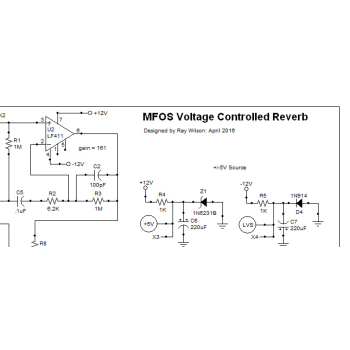

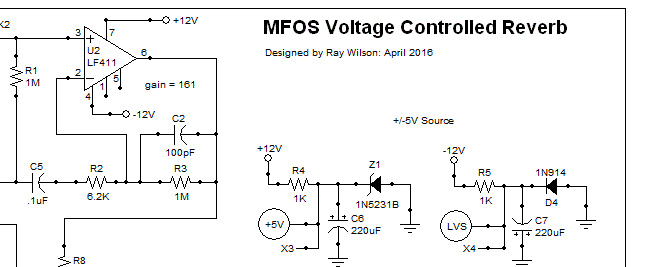

MFOS VC Reverb DIY Electronics Parts Kit


£19.30
(£16.08 exc. tax)
7210-265
100.00 g.
In stock
Made to order
Normally dispatched within 1-4 days
+
Add to wish list

Have the right skills, tools and test gear to build your own modular synth, then our kits of parts may be just what you need. As a minimum, you will need to be able to identify electronic components, recognise when they need to be correctly orientated, to be able to use a small soldering iron and finally have access to test equipment. Some modules do not require the use of test equipment but any requirement will be in the 'Setting and Trimming' notes.

The kits include all required electronics components as well as pots & switches. The PCB, connectors and knobs are not included but available from Soundtronics as an option. Our front panel + matching back panel really finish off the module in a truly professional way. If you purchase the PCB and components through Soundtronics, then we will also support you with technical assistance just in case you get into any build difficulties.

We only source quality components and we even include the more expensive turned pin IC sockets as we feel the product justifies the extra cost both for reliability and serviceability. Our optional 1/4" jack sockets are by Switchcraft, yes you can save money by buying cheaper sockets hence us offering it as an option because we recognise they are a significant cost. We have standardised on Cliff KM20 knobs for all of our modules but again, as it's an option you can choose different knobs to suit your own preference. Finally, all components are available individually should you not need to purchase the whole kit.

Kit alse excludes the reverb spring unit, see related products tab above

Each Kit Contains:

Qty Reqd. Description Value Designators ST Part No.
1 Zener Diode 500mW 5.1V, Fairchild,  1N5231B   Z1   2101-502
1 10R 0.25W 1% Metal Film Resistor 10 ohm   R6   7163-007
5 1k 0.25W 1% Metal Film Resistor 1K   R4, R5, R12, R26, R39   7163-051
1 2k 0.25W 1% Metal Film Resistor 2K   R36   7163-058
1 3k3 0.25W 1% Metal Film Resistor 3.3K   R38   7163-063
2 4k7 0.25W 1% Metal Film Resistor 4.7K   R10, R27   7163-067
1 6k2 0.25W 1% Metal Film Resistor 6.2K   R2   7163-070
2 10k 0.25W 1% Metal Film Resistor 10K   R9, R20   7163-075
2 15k 0.25W 1% Metal Film Resistor 15K   R7, R22   7163-079
2 43k 0.25W 1% Metal Film Resistor 43K   R11, R25   7163-090
2 47k 0.25W 1% Metal Film Resistor 47K   R16, R32   7163-091
8 100k 0.25W 1% Metal Film Resistor 100K   R13, R14, R18, R23, R24, R29, R30, R40   7163-099
3 200k 0.25W 1% Metal Film Resistor 200K   R8, R19, R37   7163-106
1 270k 0.25W 1% Metal Film Resistor 270K   R21   7163-109
2 470k 0.25W 1% Metal Film Resistor 470K   R17, R33   7163-114
4 1M 0.25W 1% Metal Film Resistor 1M   R1, R3, R34, R35   7163-122
2 PCB Skeleton Right Angle Phono Socket*   X1, X2 7212-320
4 Turned Pin 0.3 InchDIL IC Socket 8-Pin     7212-331
1 Turned Pin 0.3 InchDIL IC Socket 14-Pin     7212-332
1 Turned Pin 0.3 InchDIL IC Socket 16-Pin     7212-333
2 2N3906 40V TO92 PNP AUDIO Transistor   Q1, Q2   7212-410
4 1N914 75V Signal Diode   D1, D2, D3, D4   7212-486
2 Dual Op-Amp BiFET TL072CP   U5, U6   7212-542
1 Quad Op-Amp BiFET TL074   U3   7212-544
1 LM13700N Dual Transconductance Amplifiers   U4   7212-574
1 LM386N-4 Low Power Audio Amplifier 1W 8-Pin DIP 1W U1   7212-576
1 Op-Amp LF411CN JFET Low Offset 8-Pin DIP   U2   7212-577
1 100pF 2.5mm COG NPO Monolithic Radial Ceramic Capacitor 100pF   C2   7212-734
1 10nF 5mm X7R Dielectric Radial Ceramic Capacitor .01uF   C14   7212-746
1 22nF 5mm X7R Dielectric Radial Ceramic Capacitor .022uF   C27   7212-747
1 47nF 5mm X7R Dielectric Radial Ceramic Capacitor .047uF   C4   7212-748
11 100nF 5mm X7R Dielectric Radial Ceramic Capacitor .1uF   C5, C15, C16, C17, C18, C19, C21, C22, C23, C24, C25   7212-749
3 Radial Electrolytic Capacitor 10uF 25V 10uF   C8, C20, C26   7213-106
3 Radial Electrolytic Capacitor 220uF 25V 220uF   C3, C6, C7   7213-111
1 Tantalum Bead Capacitor 25V 1uF 1uF   C1   7213-205
4 1uF 50V Non-Polarised Electrolytic Capacitor 1uF   C10, C11, C12, C13   7213-302
1 10uF 50V Non-Polarised Electrolytic Capacitor 10uF   C9   7213-315
1 5mm Single Piece LED Panel Mounting Clip - Prominent 5mm LED1   7213-900
1 5mm LED Red High Efficency 45mcd 5mm Red LED1   7213-901
3 Synth Pot 16mm 100k Lin 100K   R15, R28, R31   7300-255

*Bend out front leg using a pair of small pliers so that the leg rests flat on the edge of the PCB
