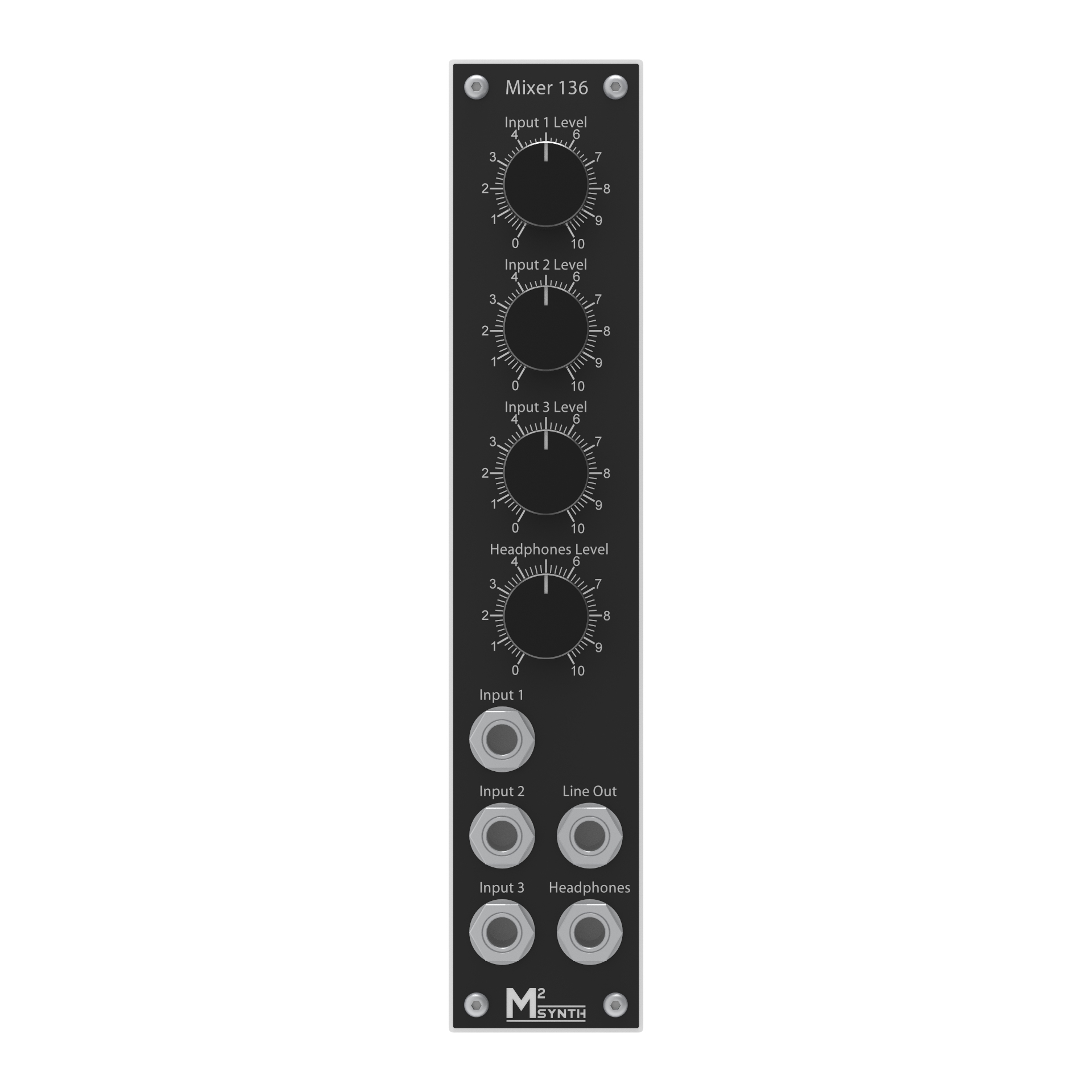

M²Synth 3-Channel Mixer 136 Kit

£55.00
(£66.00 UK, incl VAT)
7216-236
200 g
Out of stock
Please allow 4 weeks for dispatch
+

Under construction

Overview

The 3-Channel Mixer 136 we believe to be an essential module even for the smallest system such as our System 10. If no other reason than having the headphone socket and a mono line output socket for your amplifier. Don't restrict its use to just being an output module on larger systems as you can feed the line output back into the synth for further processing or onto the larger Stereo Panning Mixer 137. Furthermore, you can even mix control voltages for complex modulation effects.

Features

  • 3-input channels
  • Line and headphone outputs
  • Mix ac or dc signals to the line output

Specification

  • Supply voltage +/-12Vdc
  • Supply current  +17mA / -17mA
  • Input signal level +/-5V
  • Main PCB dimensions 43.5x130mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm aluminium back panel)
  • Fixings
