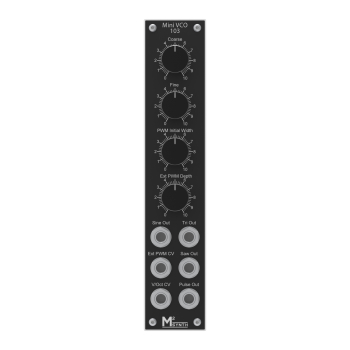

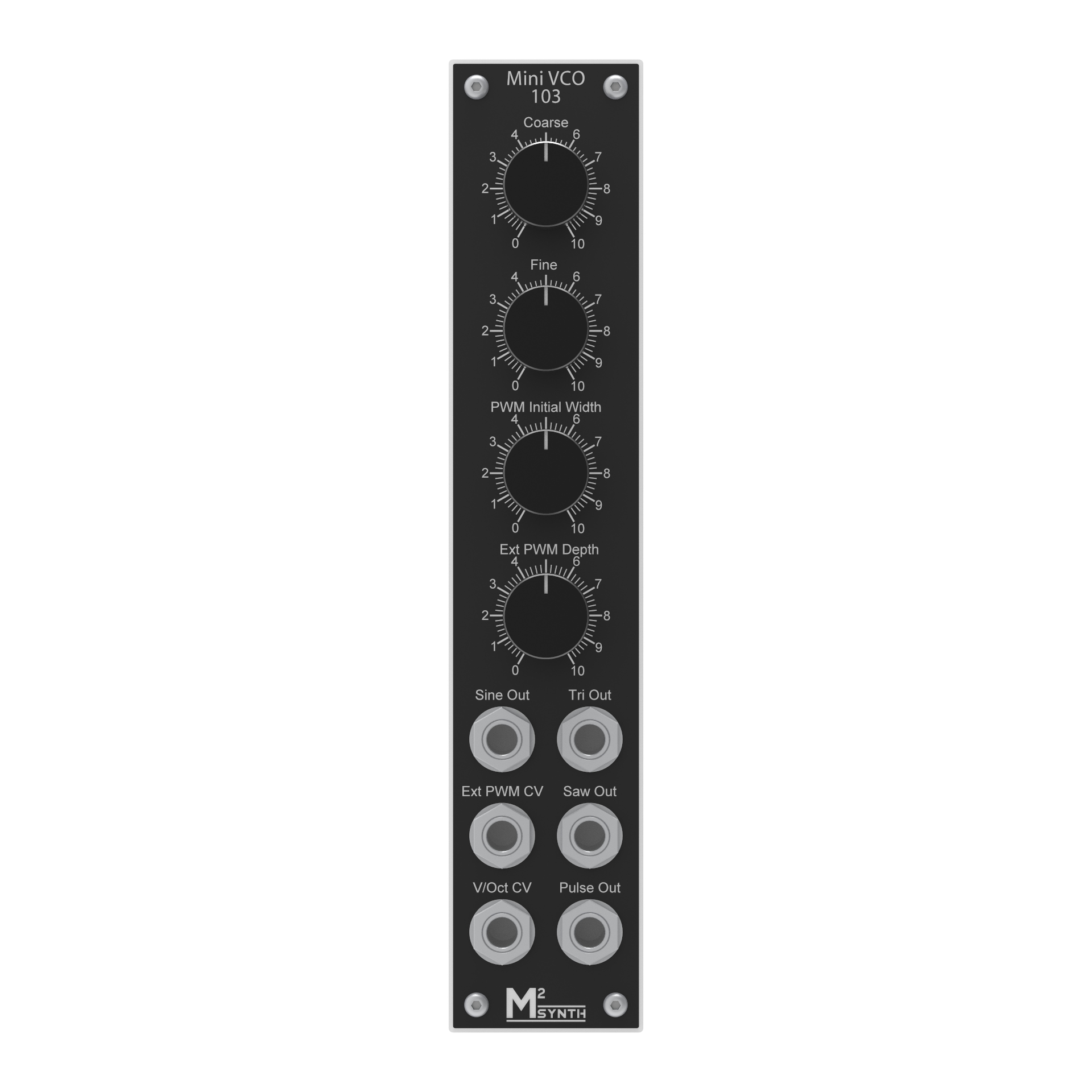

M²Synth Mini VCO 103 Kit

£69.00
(£82.80 UK, incl VAT)
7216-203
200 g
Out of stock
Please allow 4 weeks for dispatch
+

Under construction

The voltage controlled oscillator is one of the essential core modules in your modular analogue synth. The M²Synth has a few options for VCOs:

  • VCO 101 with sync inputs and sub octave pulse outputs
  • VCO 102 is a quad VCO with preset chord intervals between the VCOs
  • VCO 103 is a mini version of the 101 without the sync and sub octave features
  • Voice 108 has in addition to a VCO, other core functions including a filter, VCA, noise, ADSR etc.

Overview

This module, the VCO 101 is a fully featured oscillator which we consider to be your main VCO. Where space is limited, it pairs up well with this mini-version, the VCO 103. This combination gives the fat two oscillator sound plus offer synchronisation between the oscillators for those rich harmonic sounds.

Features

  • 4 waveforms outputs Pulse, Saw, Triangle & Sine
  • 1 Volt/Octave control voltage input
  • Coarse and fine frequency potentiometer controls
  • Pulse output can be varied from around 5% to 95% pulse width with potentiometer
  • External pulse width modulation of pulse output with potentiometer attenuator

 Specification

  • Supply voltage +/-12Vdc
  • Supply current  +20mA / -20mA
  • Waveform levels +/-5V
  • PWM CV range 0-10V
  • Frequency range <10Hz to > 16kHz using coarse and fine frequency controls. <1Hz to > 60kHz with external CV applied
  • Main PCB dimensions 43.5x130mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm aluminium back panel)
  • Fixings
