M²Synth MU Format Compact LP VCF 116 Kit

£99.00
(£118.80 UK, incl VAT)
7216-316
390 g
1-2 Weeks
+
Add to wish list

The voltage controlled filter is the prime method of filtering the harmonics of the input audio signals. The M²Synth has a number of filter choices:

  • VC LPF 110 A low pass filter (attenuates higher frequency harmonics) with a 3-channel input mixer. Width 2U.
  • VC LPF 116 A mini version of the low pass filter 110 without the 3-channel mixer. Width 1U.
  • VC HPF 111 A high pass filter (attenuates lower frequency while passing higher frequency harmonics). Width 1U.
  • VC BPF 113 A band pass filter that attenuates frequencies above and below the centre frequency passing only a narrow band of frequencies). Width 1U.
  • VC BRF 114 A band reject (notch) that attenuates a narrow band of frequencies while passing frequencies above and below the centre frequency - opposite of the band pass filter. Width 1U.
  • VC APF 115 A filter that passes all frequencies but varies the phase of the input signal at different frequencies in a non-linear way. Width 1U.
  • VC SVF 112 A state variable filter that is 4 filters in 1 LPF, HPF, BPF & APF that can be used in combination of series / parallel for complex filtering effects.

Overview

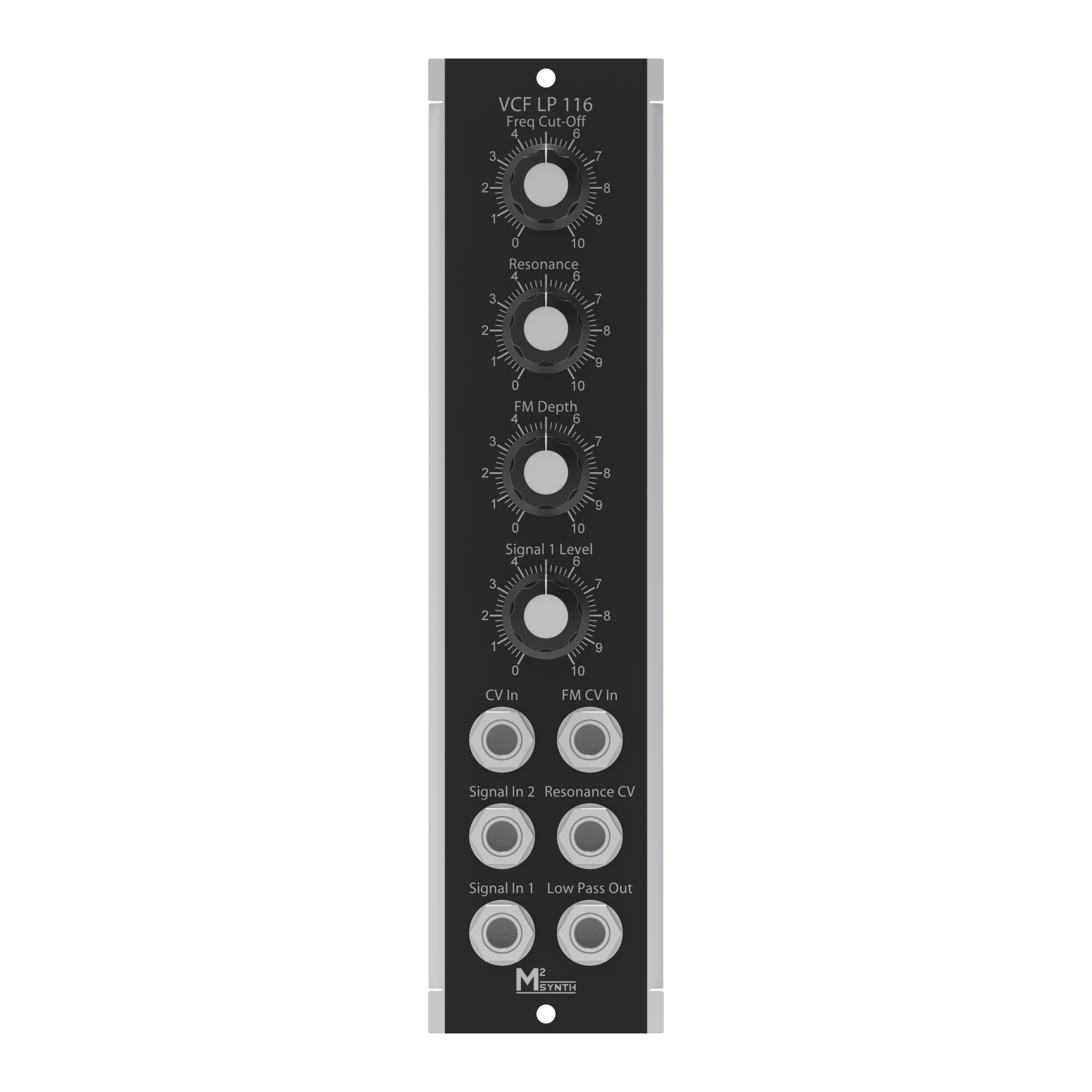

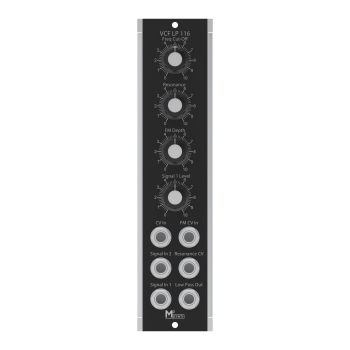

The VCF 116 is based on the larger VCF 110 but without the 3-channel signal mixer. The Compact LP VCF 116 is a 24dB/octave 4-pole low pass filter into a 1U wide module.

Features

  • 1 Volt / Octave cut-off frequency CV
  • Cut-off modulation input with potentiometer attenuator (FM3)
  • Resonance potentiometer control with an external CV resonance input
  • Self-oscillates with high resonance settings of >70%

Specification

  • Supply voltage +/-15Vdc using the included inline voltage regulator
  • Supply current  +13mA / -16mA
  • Waveform levels +/-5V
  • Frequency range: 18Hz to 14kHz without any CV applied
  • Main PCB dimensions 43.5x130mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm PCB holder)
  • Fixings
  • Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers
