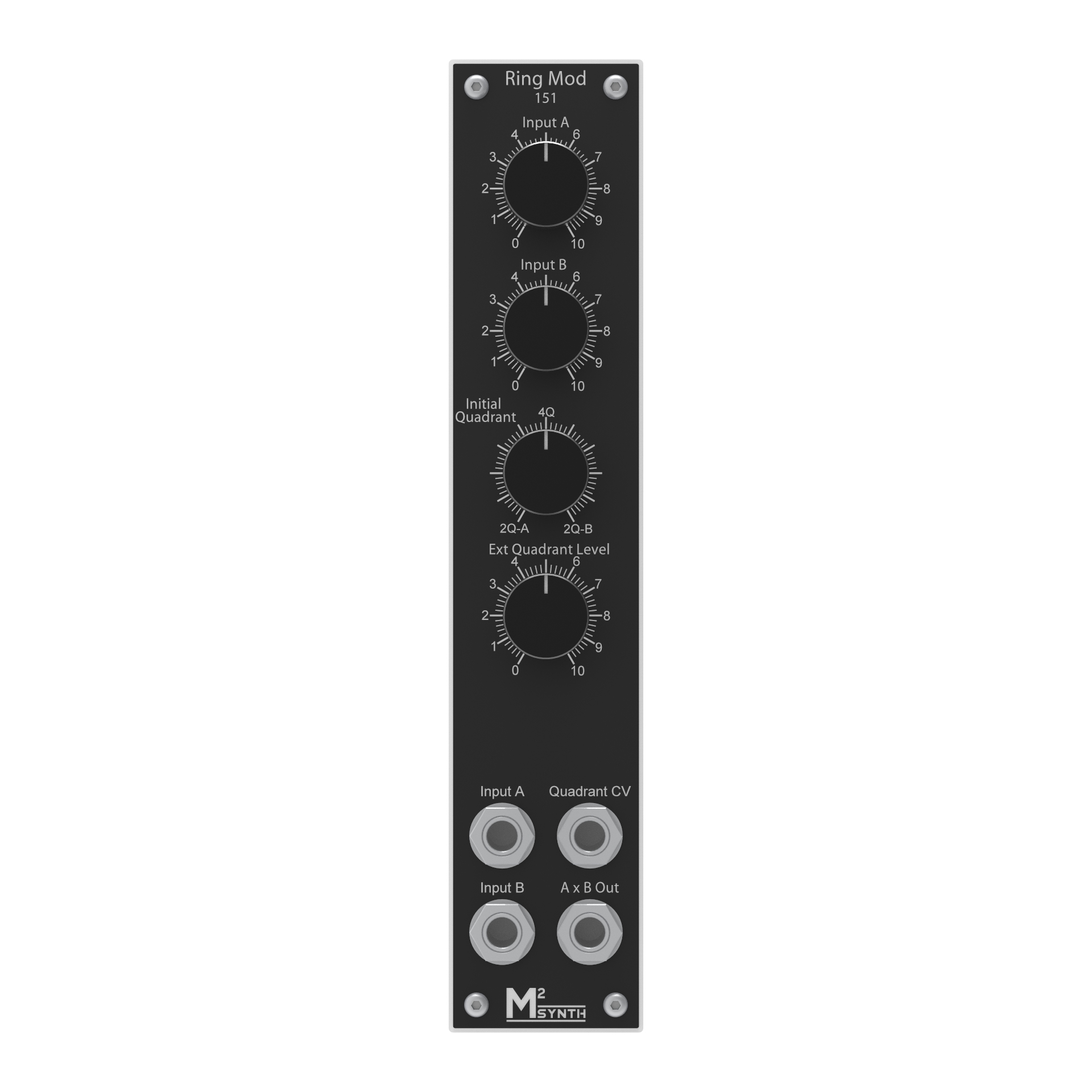

M²Synth Ring Modulator 151 Kit

£55.00
(£66.00 UK, incl VAT)
7216-251
200 g
Out of stock
Please allow 4 weeks for dispatch
+

Under construction

Overview

Another classic sound in synths is the ring modulation effect for which we have the Ring Modulator 151.

Features

  • Two modes of operation AxB where the output signal consists of the sum and the difference of the input frequencies. A second mode is 2A where the output signal is twice input A signal.
  • Bypass controls to mix the input signals with the ring modulated output signal

Specification

  • Supply voltage +/-12Vdc
  • Supply current  +12mA / -12mA
  • Main PCB dimensions 43.5x154.85mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, switches, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm aluminium back panel)
  • Fixings
