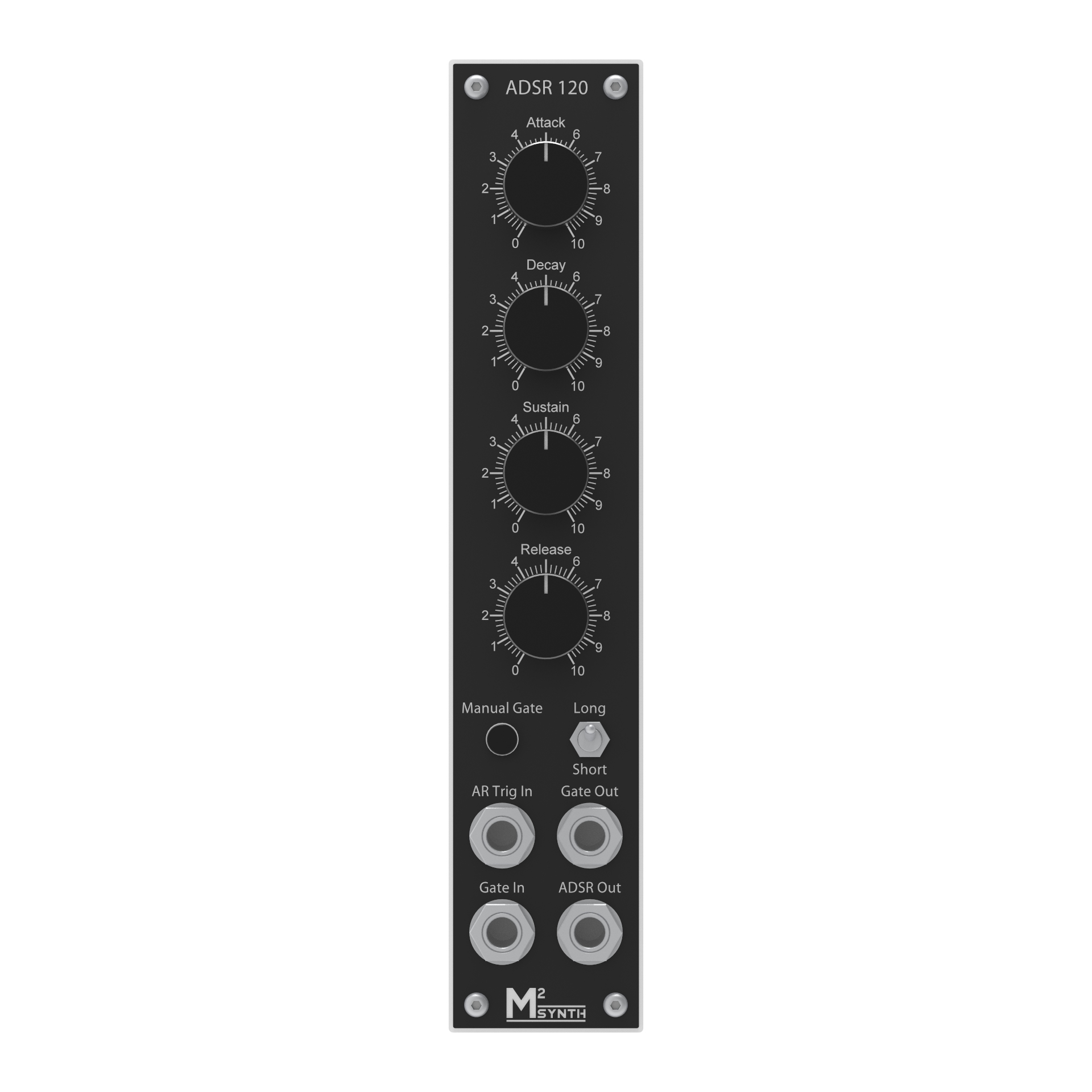

M²Synth ADSR 120 Kit

£69.00
(£82.80 UK, incl VAT)
7216-220
200 g
Available at sonicsynths.com

Overview

The ADSR 120 is one of the core modules essential to an analogue synth. Most frequently used to control a VCA but equally used to control the cut-off of a VCF. Larger systems can expect to have the need for many ADSR modules. In addition to the ADSR 120, a voltage controlled version, the VC ADSR 121 allows for dynamic changing of the ADSR values from external control sources.

Features

  • Controls for Attack, Decay and Release envelope phases along with the Sustain level
  • Time range selection switch x1 / x10
  • Gate input for full ADSR output
  • Manual gate button
  • LED indicator of gate pulse
  • AR Trig input for full AR envelope from a trigger pulse
  • The AR Trig input can also be used for re-triggering the attack / decay phases whilst the gate input is active
  • Gate output for cascading ADSR modules. Gate pulse width equal to the attack, decay and sustain periods (just the attack period when in AR trig mode).

Specification

  • Supply voltage +/-12Vdc
  • Supply current  +20mA / -23mA
  • Output level 0-10V
  • Typical delay times
Short Time Mode
  Min 50% Max
Attack 3mS 12mS 1S
Decay 6mS 35mS 3S
Release 7mS 40mS 3S
ADSR 16mS 90mS 7S


Long Time Mode
  Min 50% Max
Attack 30mS 120mS 12S
Decay 60mS 350mS 25S
Release 70mS 400mS 30S
ADSR 160mS 900mS 57S

  • Main PCB dimensions 43.5x154.85mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs, switches and jack sockets
  • Front panel assembly (faceplate and 3mm aluminium back panel)
  • Fixings
