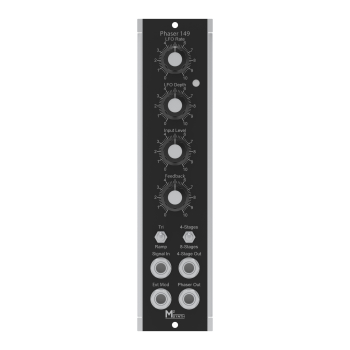

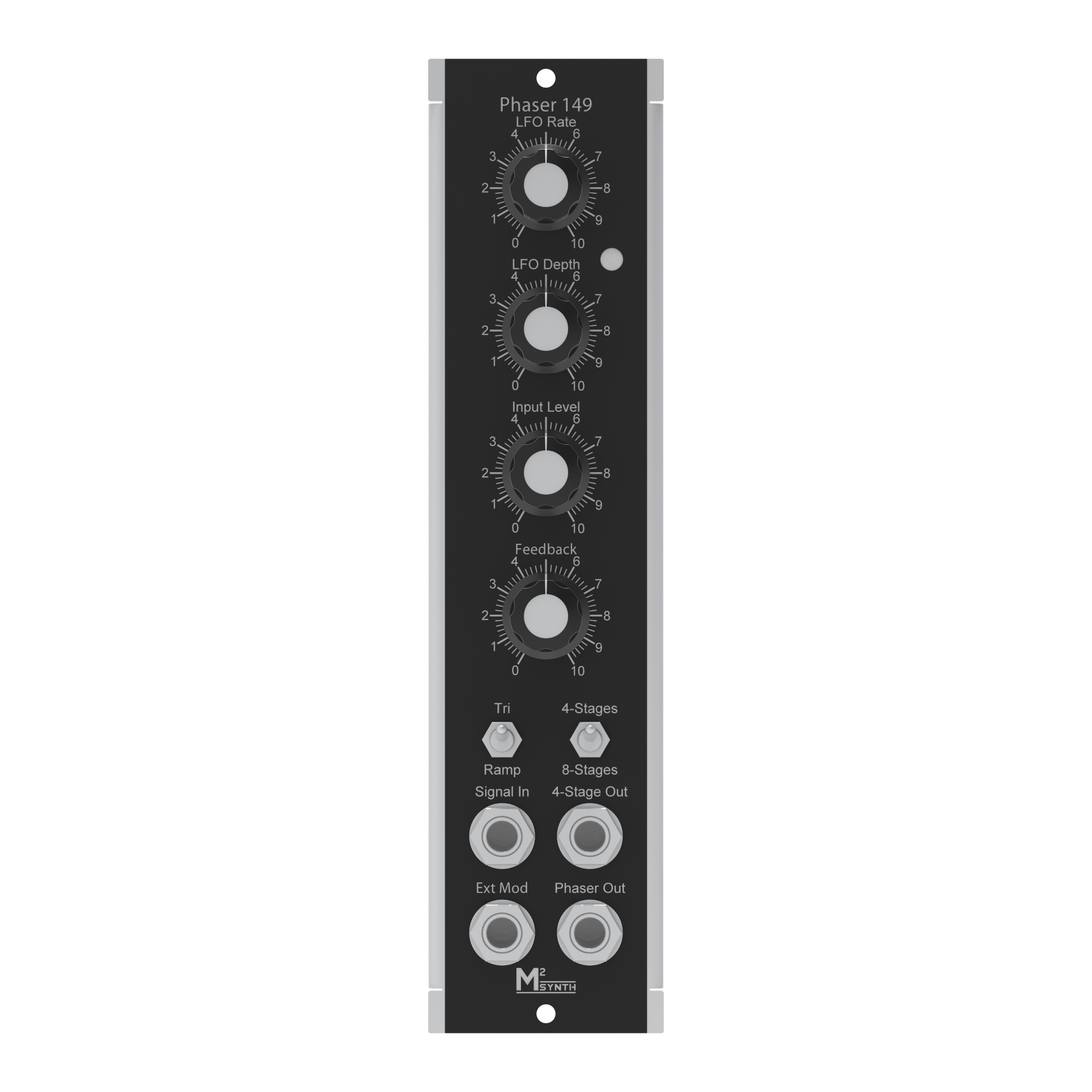

M²Synth MU Format Phaser 149 Kit

£109.00
(£130.80 UK, incl VAT)
7216-349
390 g
1-2 Weeks
+
Add to wish list

Overview

A classic sound in synths is the phaser effect for which we have the Phaser 149.

Features

  • Internal LFO with switch selection of a triangle or ramp modulation waveform with modulation depth control
  • Switch selection of number of phaser stages 4 or 8
  • Variable control for feedback (emphasis)

Specification

  • Supply voltage +/-15Vdc using the included inline voltage regulator
  • Supply current  +17mA / -24mA
  • Main PCB dimensions 43.5x154.85mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, switches, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm PCB holder)
  • Fixings
  • Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers

Assembly Guide (149_Phaser.pdf, 211 Kb) [Download]
