3-Channel Mixer 136 Build Guide
Assembly Instructions
The 3-Channel Mixer 136 module has no particular build requirements not already covered in the ‘General Build Info' page.
Calibration
This module requires no calibration or tuning.
PCB Parts List
| Part Number | Quantity | Value | Name | RefDes |
| 7212-731 | 2 | 22p | 22p MLCC Capacitor | C1, C4 |
| 7212-768 | 4 | 100n | 100n MLCC Capacitor | C2, C3, C6, C7 |
| 7213-315 | 2 | 10u Non-Pol | 10u Non-Pol Electrolytic | C5, C8 |
| 7213-110 | 2 | 100u | 100uF 25V Electrolytic | C9, C10 |
| 7212-486 | 4 | 1N914 | D1, D2, D3, D4 | |
| 7212-301 | 1 | Eurorack | Eurorack Power | J1 |
| 1208-010 | 1 | Flex Strip 10way | J2 | |
| Pot 100k Lin PCB Angle* | P1, P2, P3, P4 | |||
| 7212-409 | 2 | 2N3904 | Q1, Q3 | |
| 7212-410 | 2 | 2N3906 | Q2, Q4 | |
| 7163-027 | 4 | 100R | 100R 0.25W 1% Metal Film Resistor | R1, R12, R13, R17 |
| 7163-051 | 2 | 1k | 1k 0.25W 1% Metal Film Resistor | R2, R5 |
| 7163-083 | 4 | 22k | 22k 0.25W 1% Metal Film Resistor | R3, R11, R14, R16 |
| 7163-099 | 5 | 100k | 100k 0.25W 1% Metal Film Resistor | R4, R6, R7, R8, R10 |
| 7163-035 | 2 | 220R | 220R 0.25W 1% Metal Film Resistor | R9, R15 |
| 7212-542 | 2 | TL072 | U1, U2 |
*See below for MOTM or MU Potentiometers
Module Parts List
| Description | Reference | MOTM Qty | MU Qty |
| Components Kit | 7216-236-1 | 1 | 1 |
| Accessories Pack including: | 7216-236-2 | 1 | 1 |
| Pot Sticky Pads | 7210-188 | 4 | 4 |
| 10mm M4 Spacers | 7210-186 | 4 | 4 |
| M4 x 14 Cap Head Screws | 7210-187 | 4 | 4 |
| M3 x 8mm Stainless Panel Screws | 7216-151 | 4 | |
| 8-Pin IC Socket | 7212-331 | 2 | 2 |
| Power Lead | 7216-164 | 1 | |
| M²Synth MU / MOTM Voltage Regulator / Interface | 7216-170 | 1 | |
| MOTM Front Panel | 7216-536 | 1 | |
| MOTM Back Panel | 7216-803 | 1 | |
| MU Front and Back Panel | 7219-562 | 1 | |
| Main PCB | 7216-036 | 1 | 1 |
| Jack Socket PCB | 7215-723 | 1 | 1 |
| Jack Sockets | 7212-220 | 1 | 1 |
| B100k Pots Long Shaft | 7300-820 | 4 | |
| B100k Pots Short Shaft | 7300-821 | 4 | |
| Stereo Jack Socket | 1205-074 | 4 | 4 |
| KM20B Knobs | 7212-170 | 4 | |
| MU Knobs | 7212-169 | 4 | |
| Circuit Schematic | S-7216-036-b | 1 | 1 |

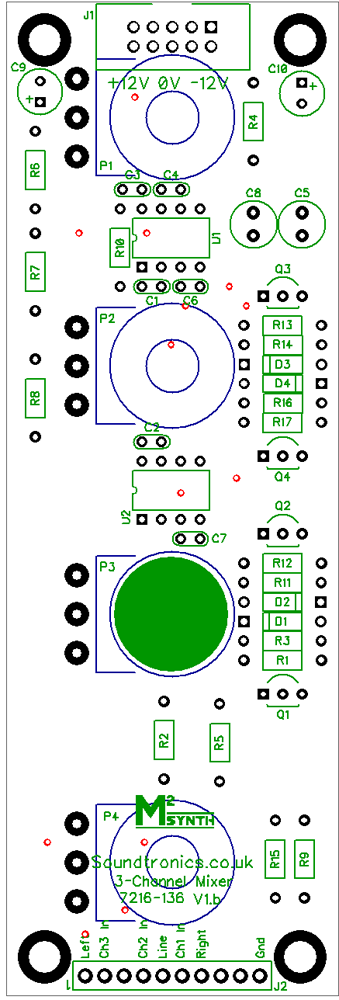

PCB Layout
