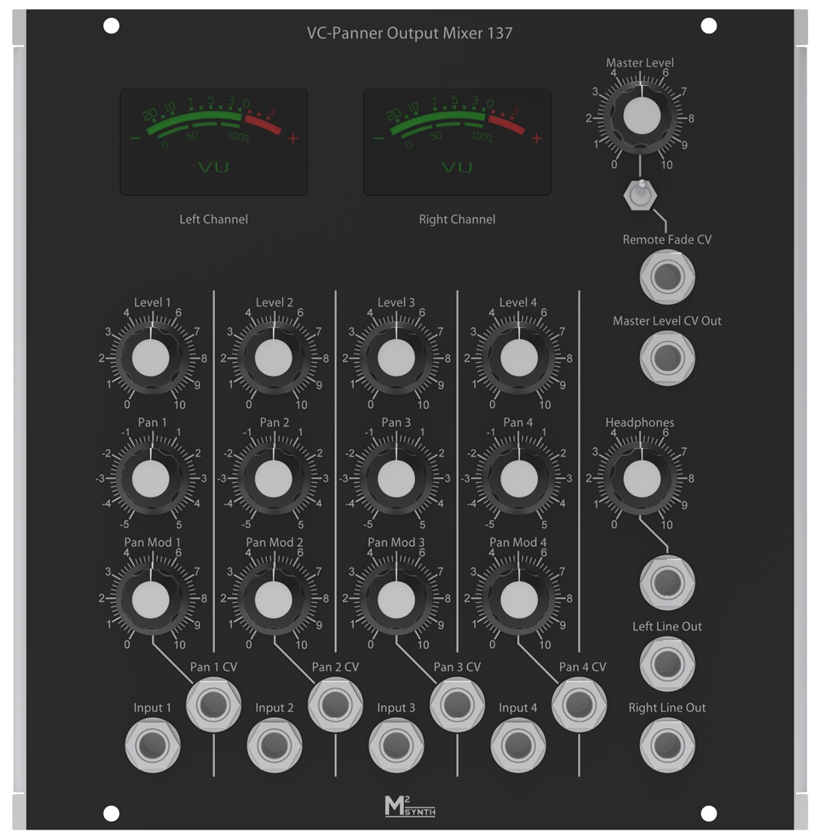

About the 4-Ch Pan Mixer 137

Features

• 4-input channels
• Stereo line and headphone outputs
• Initial pan position for each channel
• External panning CV with attenuator control
• Master level control or external fade control voltage to set master level
• Master level control voltage output that can be used as the fade input control voltage to a second mixer 137

Specification

• Supply voltage +/-12Vdc (note: this module uses two power supply connectors for load sharing). For the MU version, use the included inline voltage regulator modules for +/-15V
• Supply current: J1 +30mA / -30mA, J2 +36mA / -30mA
• Input signal level +/-5V
• 0-10V control voltages
• Main PCB dimensions 175.26 x 151.424mm
