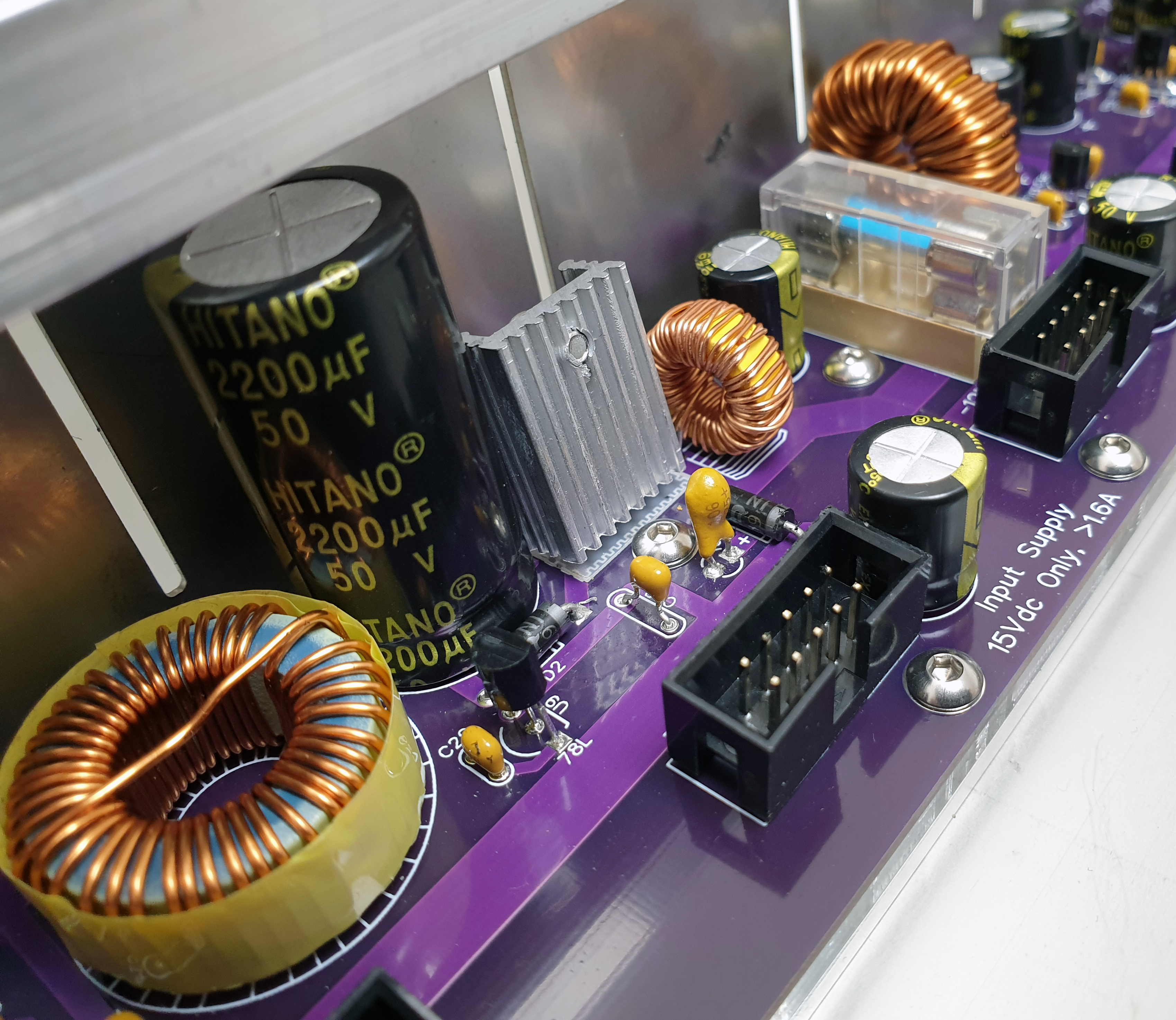

About the Pod PSU 182


  • 10 module power sockets at 1U intervals
  • On-board fuse protection
  • 10 bipolar voltage regulators, one for each module power socket
  • Noise filters
  • Ground planes on PCB which are also connected to the POD chassis. When creating multiple POD systems, this helps keep all Pods very close to the same common 0V (ground) potential avoiding circulating currents and its associated audible noise / hum


  • Supply voltage +15Vdc
  • Supply current around 1A to 1.2A
  • Maximum load per channel +/-85mA
  • Maximum load per 182 board +600mA / -400mA
  • Main PCB dimensions 420 x 53mm
