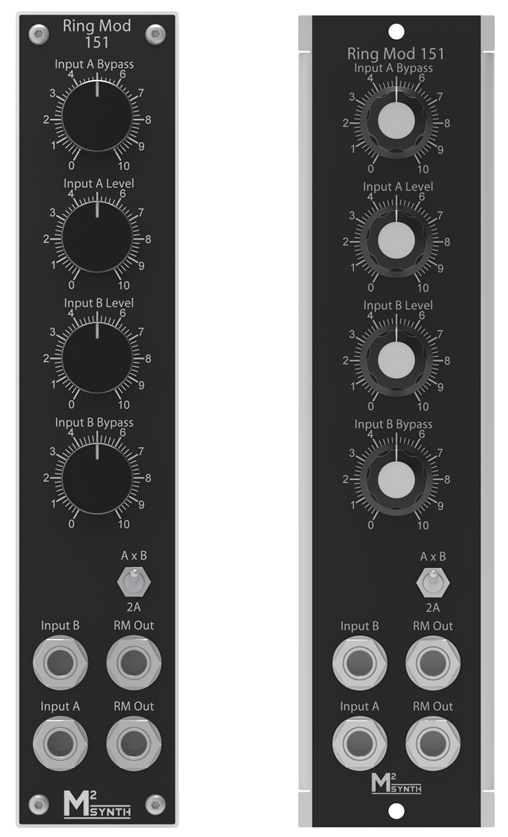

About the Ring Modulator 151


  • Two modes of operation AxB where the output signal consists of the sum and the difference of the input frequencies. A second mode is 2A where the output signal is twice input A signal.
  • Bypass controls to mix the input signals with the ring modulated output signal


  • Supply voltage +/-12Vdc
  • Supply current +12mA / -12mA
  • Main PCB dimensions 43.5x154.85mm
