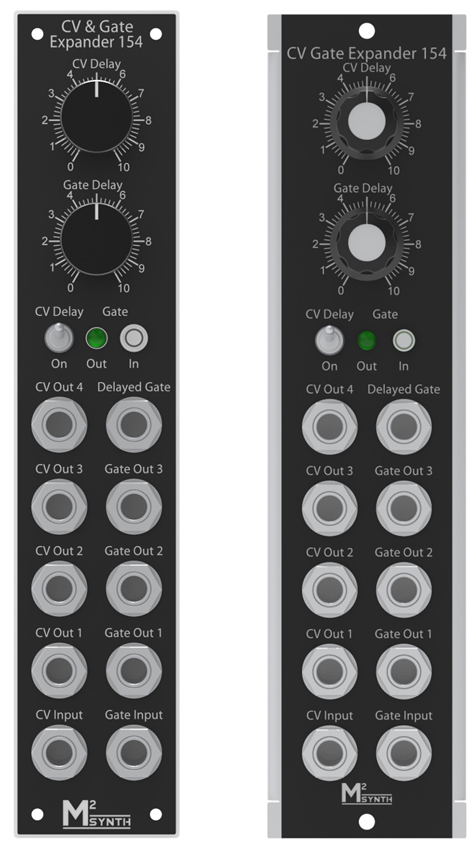

About the CV/Gate Expander 154

Features

• Creates ‘Multiples’ of both CV and Gate signal
• Single CV input creates four copy outputs
• Switch in a CV variable delay (portamento) to the CV outputs
• Single gate input creates 3 copy outputs + a forth variable delayed output
• Illuminated gate input pushbutton
• LED indicating the gate output

Specification

• Supply voltage +/-12Vdc
• Supply current  +15mA / -12mA
• Output level 0-10V
• Main PCB dimensions 43.5 x 86.7mm
